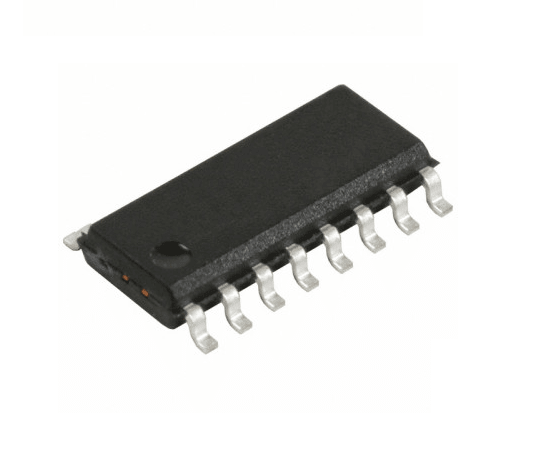

ADC128D818CIMT TSSOP-16 12-Bit Analog to Digital Converter IC (ADC128D818CIMT)
The ADC128D818CIMT is a high performance 12-bit Analog to Digital Converter IC designed for sensor monitoring, system management, industrial automation, and data acquisition applications. It features multiple analog input channels, temperature monitoring capability, and I2C communication support in a compact TSSOP-16 package.
Key Features -
- 12-bit analog to digital converter IC
- Multiple analog input monitoring channels
- Integrated temperature sensing support
- TSSOP-16 surface mount package
- I2C serial communication interface
Specifications -
- IC type / Product type - 12-Bit Analog to Digital Converter IC
- Logic family / Component type - Precision Data Converter IC
- Package type - TSSOP-16 SMD IC
- Supply voltage - Approx 2.7V to 5.5V DC
- Input voltage - Multiple analog input channels
- Output voltage - Digital output data through I2C interface
- Current rating - Low power monitoring operation
- Frequency / propagation delay - Fast analog sampling and conversion performance
- Operating temperature - Approx -40 to +85 degree C
- Additional important specifications - 8 analog input channels, integrated temperature monitoring, programmable alert function, I2C compatible interface, low power operation, high accuracy conversion performance
Applications -
- System health monitoring
- Industrial automation systems
- Sensor data acquisition
- Embedded monitoring systems
- Power management applications
Pinout Configuration -
- Pin 1 - Analog input channel
- Pin 2 - Analog input channel
- Pin 3 - Ground connection
- Additional pins - I2C data pin, I2C clock pin, alert output pin, power supply pins, temperature sensing connections, additional analog input channels
