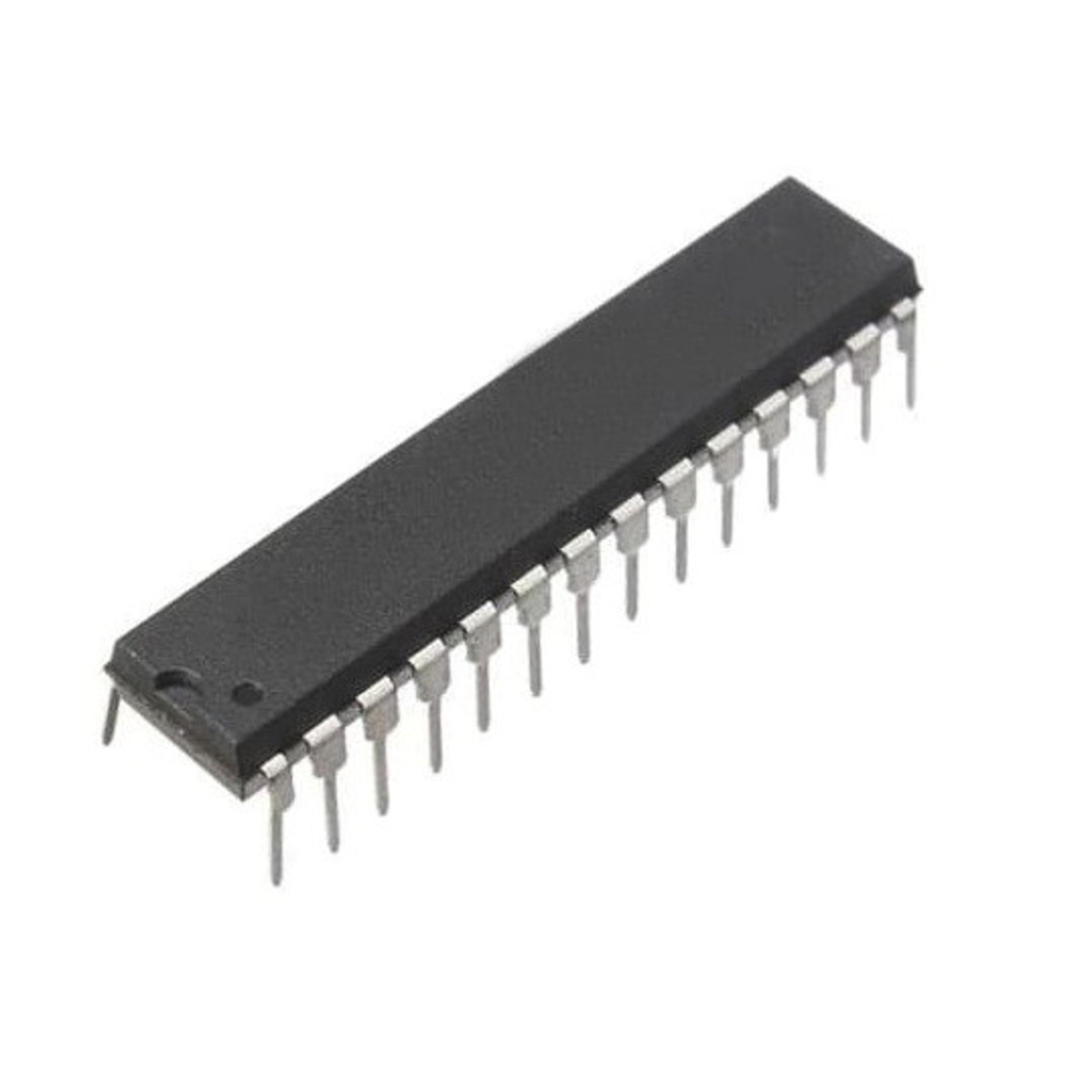

ADS774KE 12-Bit Analog to Digital Converter IC DIP-28 (ADS774KE ADC IC)

The ADS774KE is a high-performance 12-bit Analog to Digital Converter (ADC) designed for precision data acquisition, industrial control systems, instrumentation, process monitoring, and embedded measurement applications. It features fast conversion speeds, parallel data output, and high accuracy, making it suitable for converting analog signals into digital data for microprocessor and microcontroller-based systems.

Key Features -

• 12-bit resolution analog to digital converter

• High accuracy data conversion

• Fast conversion performance

• Parallel digital data output

• Monolithic successive approximation architecture

• Wide input voltage range support

• Low power operation

• DIP-28 through hole package

Specifications -

• Product type - Analog to Digital Converter IC

• Model - ADS774KE

• Resolution - 12 Bit

• Converter architecture - Successive Approximation ADC

• Data output - Parallel Digital Output

• Conversion type - Analog to Digital

• Input type - Analog Voltage Input

• Package type - DIP-28

• Mounting type - Through Hole

• Application - Precision Data Acquisition

Applications -

• Industrial automation systems

• Data acquisition equipment

• Process control systems

• Test and measurement instruments

• Embedded monitoring systems

• Medical instrumentation

• Sensor signal processing

• Laboratory equipment
