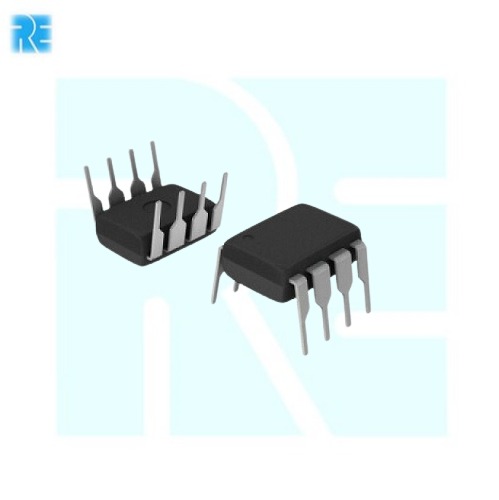

AP8012H AC DC PWM Controller IC DIP 8 (800V MOSFET, 6W, Offline SMPS Primary Switcher)

SKU: ICD-1296Category: Electronic Components
₹ 29.50 (Inclusive of 18.00% GST)
Base Price: ₹ 25.00 | GST (18.00%): ₹ 4.50
In Stock
Secure payments powered by Razorpay
UPIMastercardRuPayGoogle Pay
Pune Store Pickup – Free
Order before 5 PM • Ready in approx. 2 hours
Collect upto 7:30 PM (Mon – Sat)
Dispatch from Pune
Orders before 3 PM: Same day dispatch
Orders after 3 PM: Next day dispatch
(No dispatch on Sunday)
Buying in bulk?
Secure Payments100% safe and trusted
GST InvoiceWith every order
Wide Product RangeComponents, modules, tools and more
Product SupportQuick assistance via email

AP8012H AC DC PWM Controller IC DIP 8 (800V MOSFET, 6W, Offline SMPS Primary Switcher)

The AP8012H AC DC PWM Controller IC is an offline switching power supply controller designed for compact AC DC power conversion and Switch Mode Power Supply (SMPS) applications. Featuring an integrated 800V avalanche rugged power MOSFET, this primary side switcher supports a wide AC input voltage range of 85V to 265V and provides up to 6W steady output power in the DIP 8 package under specified operating conditions.

The AP8012H integrates essential power conversion functions, including an internal high voltage startup circuit, built in soft start, frequency modulation and burst mode operation. Its frequency modulation technology helps reduce electromagnetic interference (EMI), while burst mode operation improves efficiency under light load conditions. The integrated high voltage MOSFET reduces the need for external switching components, making this IC suitable for compact offline power supplies, household electronic equipment and low power AC DC converter designs.

Key Features

• AP8012H offline AC DC PWM controller IC

• Integrated 800V avalanche rugged power MOSFET

• Wide AC input voltage range of 85V to 265V

• Supports up to 6W steady output power in DIP 8 package

• Frequency modulation for reduced electromagnetic interference

• Burst mode operation for improved light load efficiency

• Built in soft start functionality

• Integrated high voltage startup circuit

• Compact design with reduced external component requirements

• Suitable for low power offline SMPS applications
