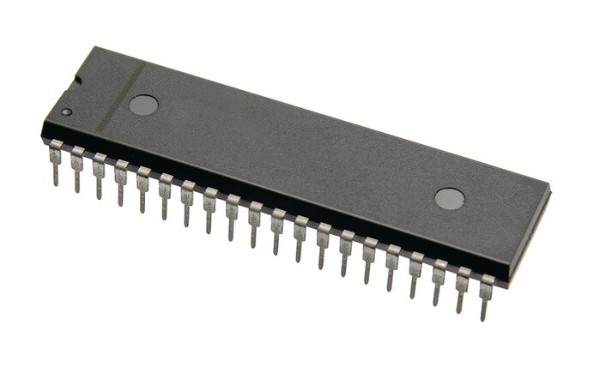

AT89C52 24PU CH 8 Bit Microcontroller DIP40 Package (AT89C52 Microcontroller IC)

The AT89C52 24PU CH Microcontroller is an 8 bit 8051 based microcontroller designed for embedded systems, automation equipment, educational development, and industrial electronic applications. It features Flash programmable memory, multiple I O ports, timers, and serial communication support in a DIP40 package.

Key Features -

• 8 bit 8051 architecture microcontroller

• DIP40 through hole package

• Flash programmable memory

• Multiple digital I O ports

• UART serial communication support

• Reliable embedded control performance

Specifications -

• Product type - Microcontroller IC

• Model - AT89C5224PU CH

• Microcontroller architecture - 8051 compatible

• Package type - DIP40 package

• Mounting type - Through hole mounting

• Flash memory - 8KB

• RAM - 256 bytes

• Operating frequency - Up to 24MHz

• GPIO pins - 32 programmable I O lines

• Timers - 3 timer counter modules

• Communication interface - UART serial interface

• Operating voltage - 4V to 5.5V

• Additional features - Low power operation, reliable performance, on chip oscillator support

Applications -

• Embedded electronic systems

• Industrial automation

• Educational development boards

• Robotics and control systems

• Communication interface projects

Pinout Configuration -

• Port pins - Digital input output connections

• VCC - Power supply input

• GND - Ground connection

• XTAL1 and XTAL2 - Crystal oscillator connections

• RST - Reset input pin

• RXD and TXD - Serial communication pins
