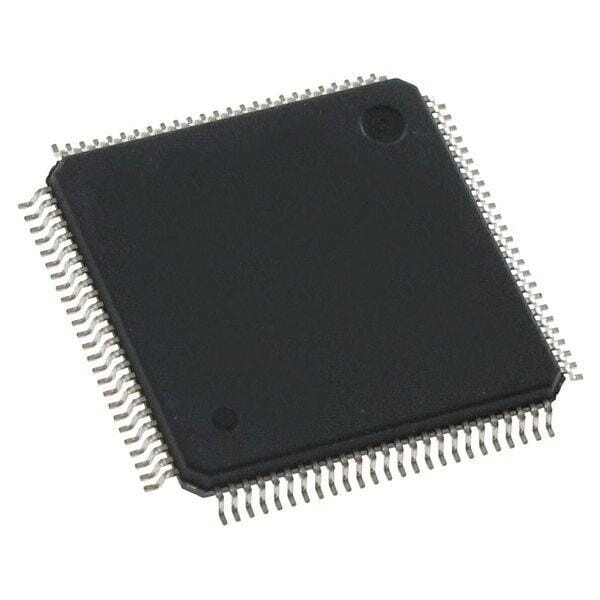

ATMEGA2560-16AU Atmel AVR 8 Bit Microcontroller IC TQFP 100 (16MHz, 1 Qty)

The ATMEGA2560-16AU Atmel AVR 8 Bit Microcontroller IC is a high performance, low power microcontroller designed for advanced embedded systems, industrial automation, robotics and electronic control applications. Featuring an 8 bit AVR RISC architecture, maximum operating frequency of 16MHz and a compact TQFP 100 surface mount package, this microcontroller provides extensive memory capacity and versatile peripheral connectivity.

The ATMEGA2560-16AU integrates 256KB Flash program memory, 8KB SRAM, 4KB EEPROM, a 10 bit analog to digital converter, multiple timers, PWM channels and serial communication interfaces. Widely used in Arduino Mega 2560 based designs, this microcontroller is suitable for applications requiring multiple input and output connections, complex control functions and reliable embedded processing.

Key Features -

• Original Atmel ATMEGA2560-16AU AVR microcontroller IC

• High performance 8 bit AVR RISC architecture

• Maximum operating frequency of 16MHz

• Low power CMOS technology

• 256KB In System Programmable Flash memory

• 8KB SRAM data memory

• 4KB EEPROM data memory

• TQFP 100 surface mount package

• Up to 86 programmable I/O lines

• 10 bit analog to digital converter

• 16 ADC input channels

• 15 PWM output channels

• Four USART serial communication interfaces

• SPI and I2C compatible TWI communication support

• Six programmable timer and counter modules

• Watchdog timer with separate oscillator

• JTAG interface for programming and debugging

• In System Programming support

• Compatible with Arduino Mega 2560 based designs

• Suitable for industrial and embedded applications

• Pack Quantity: 1 Qty

Specifications -

• Brand: Atmel / Microchip

• Part Number: ATMEGA2560-16AU

• Product Type: 8 Bit Microcontroller IC

• Microcontroller Family: AVR ATmega

• Core Architecture: 8 Bit AVR RISC

• Maximum Clock Frequency: 16MHz

• Operating Voltage: 4.5V to 5.5V DC at 16MHz

• Program Memory Type: Flash

• Flash Memory Capacity: 256KB

• SRAM Memory: 8KB

• EEPROM Memory: 4KB

• Package Type: TQFP 100

• Mounting Type: Surface Mount

• Number of Pins: 100

• Programmable I/O Lines: Up to 86

• ADC Resolution: 10 Bit

• ADC Channels: 16

• PWM Channels: 15

• USART Interfaces: 4

• SPI Interface: Supported

• I2C Interface: TWI Compatible

• Timer and Counter Modules: 6

• External Interrupts: Supported

• Watchdog Timer: Available

• JTAG Interface: Supported

• Programming Interface: ISP and JTAG

• Oscillator Support: Internal and External Clock Sources

• Logic Technology: CMOS

• Application: Embedded Control and Automation

• Pack Quantity: 1 Qty (1 Piece)

Applications -

• Arduino Mega 2560 development boards

• Embedded control systems

• Industrial automation equipment

• Robotics and mechatronics projects

• CNC machine controllers

• 3D printer control boards

• Motor control and automation circuits

• Sensor interfacing systems

• Data acquisition and monitoring equipment

• Electronic instrumentation

• Communication and interface controllers

• Multi channel input and output systems

• Smart home automation projects

• Industrial process control

• Educational microcontroller development

• Custom PCB and embedded system designs
