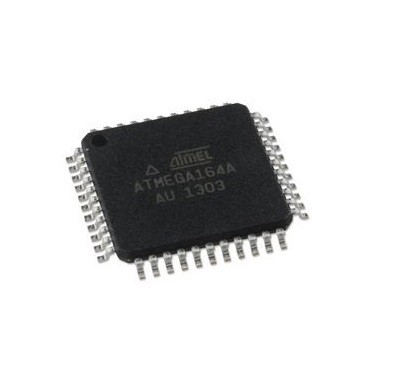

ATMEGA164A TQFP-44 8-Bit AVR Microcontroller IC with Flash Memory (ATMEGA164A)
The ATMEGA164A is a high performance 8-bit AVR microcontroller IC designed for embedded control, industrial automation, communication systems, and sensor interfacing applications. It features Flash program memory, ADC functionality, PWM support, timers, and multiple communication interfaces in a compact TQFP-44 package.
Key Features -
- High performance 8-bit AVR microcontroller
- Integrated ADC and PWM functionality
- Multiple communication interfaces
- TQFP-44 surface mount package
- Low power embedded operation
Specifications -
- IC type / Product type - 8-Bit AVR Microcontroller IC
- Logic family / Component type - Embedded Microcontroller IC
- Package type - TQFP-44 SMD IC
- Supply voltage - Approx 1.8V to 5.5V DC
- Input voltage - CMOS compatible digital input levels
- Output voltage - CMOS logic output levels
- Current rating - Low power embedded operation
- Frequency / propagation delay - Operating frequency up to approx 20MHz
- Operating temperature - Approx -40 to +85 degree C
- Additional important specifications - 16KB Flash memory, SRAM and EEPROM support, ADC channels, PWM modules, USART communication support, SPI and I2C compatible interface support, timers, watchdog timer support, programmable GPIO pins
Applications -
- Embedded control systems
- Industrial automation equipment
- Sensor interfacing applications
- Communication and monitoring systems
- AVR microcontroller development projects
Pinout Configuration -
- Pin 1 - Power supply pin
- Pin 2 - GPIO or communication interface pin
- Pin 3 - Oscillator or GPIO function pin
- Additional pins - ADC input pins, PWM output pins, USART pins, SPI pins, timer pins, programmable GPIO pins, reset pin, ground connection
