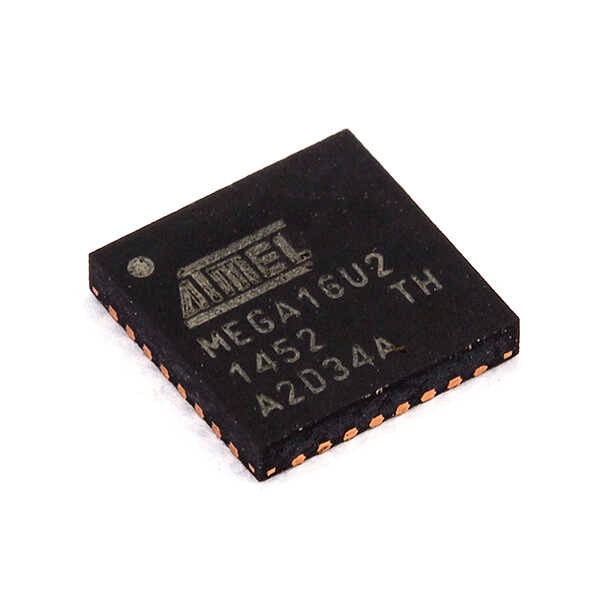

ATMEGA16U2-MU QFN-32 8-Bit AVR Microcontroller IC with USB Interface (ATMEGA16U2-MU)

The ATMEGA16U2-MU is a high performance 8-bit AVR microcontroller IC designed for USB communication, embedded control, industrial automation, and electronic interface applications. It features onboard Flash memory, USB 2.0 support, multiple communication interfaces, and low power operation in a compact QFN-32 package.

Key Features -

  • High performance 8-bit AVR microcontroller
  • Integrated USB 2.0 full speed support
  • Multiple communication interfaces
  • QFN-32 surface mount package
  • Low power embedded operation

Specifications -

  • IC type / Product type - 8-Bit AVR Microcontroller IC
  • Logic family / Component type - Embedded Microcontroller IC
  • Package type - QFN-32 SMD IC
  • Supply voltage - Approx 2.7V to 5.5V DC
  • Input voltage - CMOS compatible digital input levels
  • Output voltage - CMOS logic output levels
  • Current rating - Low power embedded operation
  • Frequency / propagation delay - Operating frequency up to approx 16MHz
  • Operating temperature - Approx -40 to +85 degree C
  • Additional important specifications - USB 2.0 full speed interface, Flash program memory, SRAM and EEPROM support, SPI interface, USART support, I2C compatible interface, timers, PWM support, programmable GPIO pins

Applications -

  • USB communication devices
  • Embedded control systems
  • Industrial automation equipment
  • Development and interface boards
  • Microcontroller based electronic projects

Pinout Configuration -

  • Pin 1 - Power supply pin
  • Pin 2 - GPIO or communication interface pin
  • Pin 3 - USB data interface pin
  • Additional pins - Oscillator pins, reset pin, SPI pins, USART pins, timer pins, programmable GPIO pins, ground connection
