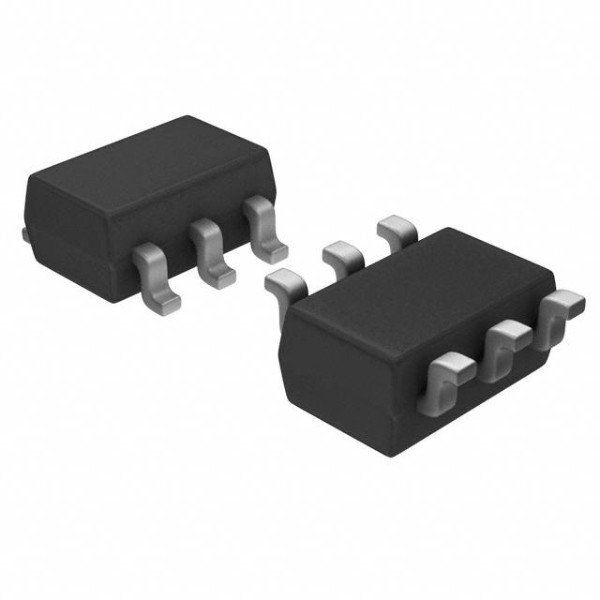

ATTINY10 SOT-23-6 8-Bit AVR Microcontroller IC with Flash Memory (ATTINY10)
The ATTINY10 is a compact 8-bit AVR microcontroller IC designed for low power embedded control, compact electronic devices, sensor interfacing, and automation applications. It features onboard Flash memory, timers, programmable GPIO pins, and low power operation in a miniature SOT-23-6 package.
Key Features -
- Compact 8-bit AVR microcontroller
- Low power embedded operation
- Integrated Flash memory support
- SOT-23-6 ultra compact package
- Internal oscillator support
Specifications -
- IC type / Product type - 8-Bit AVR Microcontroller IC
- Logic family / Component type - Embedded Microcontroller IC
- Package type - SOT-23-6 SMD IC
- Supply voltage - Approx 1.8V to 5.5V DC
- Input voltage - CMOS compatible digital input levels
- Output voltage - CMOS logic output levels
- Current rating - Ultra low power operation
- Frequency / propagation delay - Internal oscillator frequency up to approx 12MHz
- Operating temperature - Approx -40 to +85 degree C
- Additional important specifications - Flash program memory, SRAM support, timers, watchdog timer support, programmable GPIO pins, low power sleep modes, internal oscillator operation
Applications -
- Compact embedded control systems
- Sensor interfacing applications
- Consumer electronic devices
- Portable and battery powered electronics
- AVR microcontroller development projects
Pinout Configuration -
- Pin 1 - Power supply pin
- Pin 2 - GPIO or programming interface pin
- Pin 3 - GPIO or timer function pin
- Additional pins - Reset pin, programmable GPIO pins, ground connection
