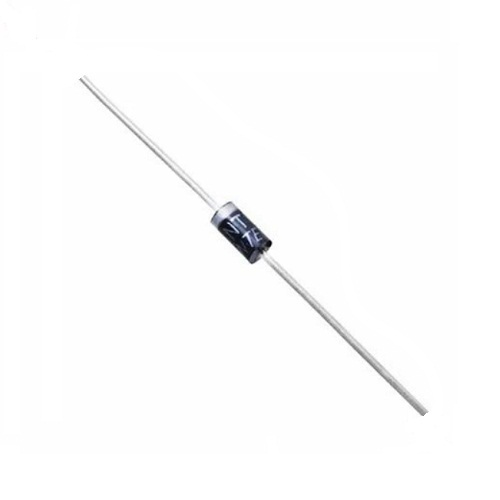

BA159 Fast Recovery Diode 1.3A 1000V (High Voltage Switching Rectifier Diode)

The BA159 1.3A 1000V Fast Recovery Diode is a high-voltage switching rectifier diode designed for efficient power conversion and high-frequency applications. With a 1000V maximum repetitive peak reverse voltage, 1.3A forward current capability, low forward voltage drop, and fast switching performance, it provides reliable rectification and protection in electronic circuits. It is suitable for SMPS, inverter circuits, high-voltage power supplies, and general-purpose switching applications.

Key Features -

• High reverse voltage rating of 1000V

• Forward current capability of 1.3A

• Fast switching performance for high efficiency

• Low forward voltage drop

• Low reverse leakage current

• High forward surge current capability

• Suitable for high-frequency rectification applications

• Reliable operation in high-voltage circuits

Specifications -

• Product Type - Fast Recovery Rectifier Diode

• Part Number - BA159

• Forward Current (IF) - 1.3A

• Maximum Repetitive Peak Reverse Voltage (VRRM) - 1000V

• Maximum RMS Voltage (VRMS) - 700V

• Maximum DC Blocking Voltage (VDC) - 1000V

• Diode Type - Fast Switching Diode

• Mounting Type - Through Hole

• Application - High Voltage Rectification and Switching

Applications -

• Switch Mode Power Supplies (SMPS)

• High voltage rectifier circuits

• Inverter circuits

• Power conversion equipment

• Flyback converter circuits

• Voltage multiplier circuits

• Industrial electronic equipment

• General-purpose switching applications
