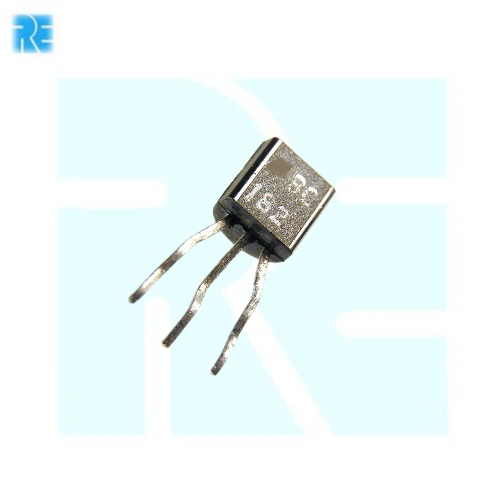

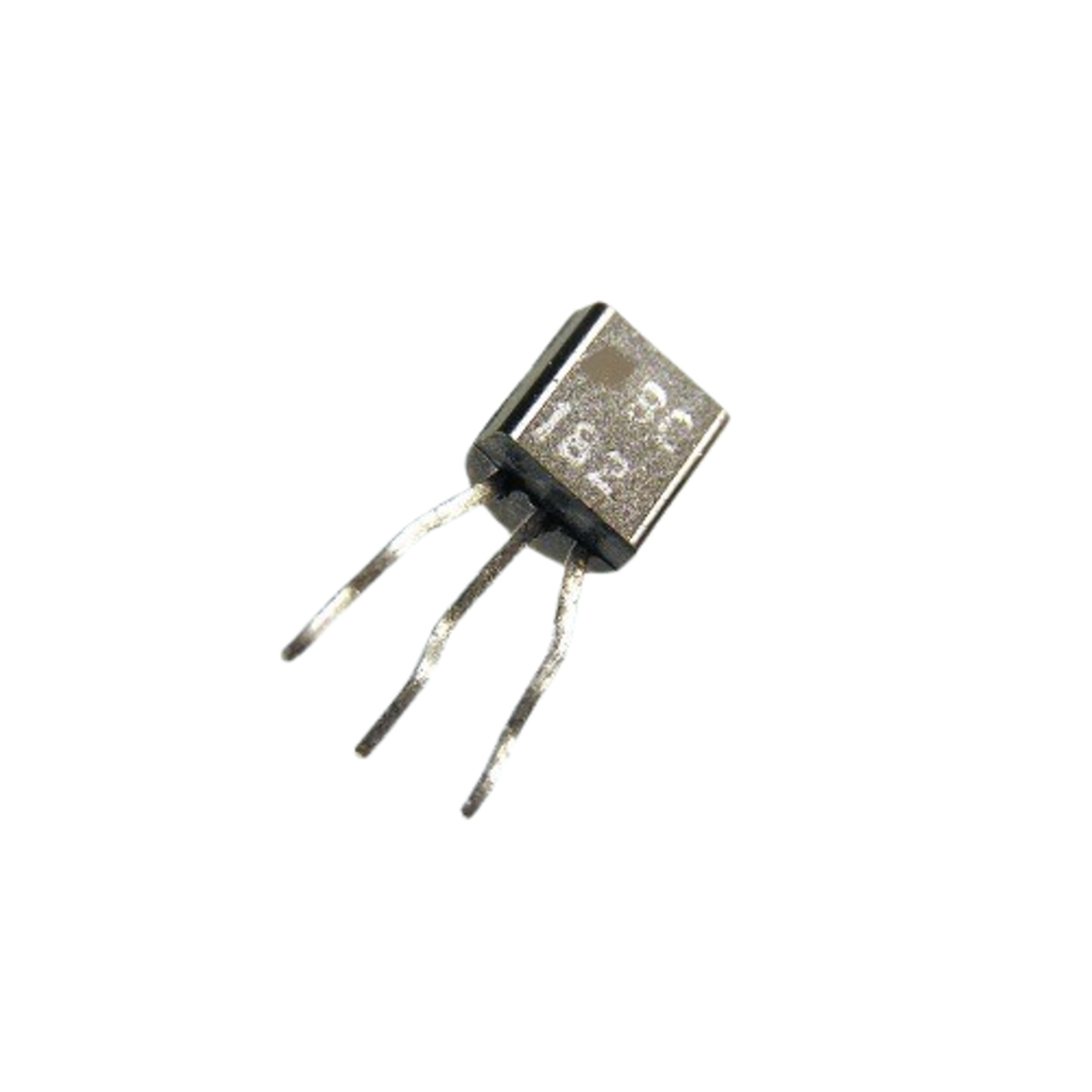

BC182L General Purpose Amplifier NPN Transistor – TO-92 Package

The BC182L is a general-purpose NPN bipolar junction transistor (BJT) designed for low-power amplification and switching applications. Featuring reliable performance, good current gain, and a compact TO-92 package, it is widely used in audio amplifiers, signal processing circuits, control systems, sensor interfaces, and educational electronics projects.

Key Features -

• General-purpose NPN transistor

• Suitable for amplification and switching applications

• Low-noise silicon transistor design

• Compact TO-92 through-hole package

• Good DC current gain characteristics

• Reliable and stable operation

• Easy integration into PCB designs

Specifications -

• Product type - Bipolar Junction Transistor (BJT)

• Part number - BC182L

• Transistor polarity - NPN

• Package type - TO-92

• Mounting type - Through Hole

• Number of pins - 3

• Technology - Silicon

• Collector-Emitter Voltage (VCEO) - 50V

• Collector-Base Voltage (VCBO) - 60V

• Emitter-Base Voltage (VEBO) - 5V

• Maximum Collector Current (IC) - 100mA

• Power Dissipation - 350mW

• Transition Frequency (fT) - 150MHz

• Operating Temperature Range - -55°C to +150°C

Applications -

• Signal amplification circuits

• Audio preamplifiers

• Relay and LED driver circuits

• Sensor interface applications

• Switching circuits

• Industrial control systems

• Educational and DIY electronics projects
