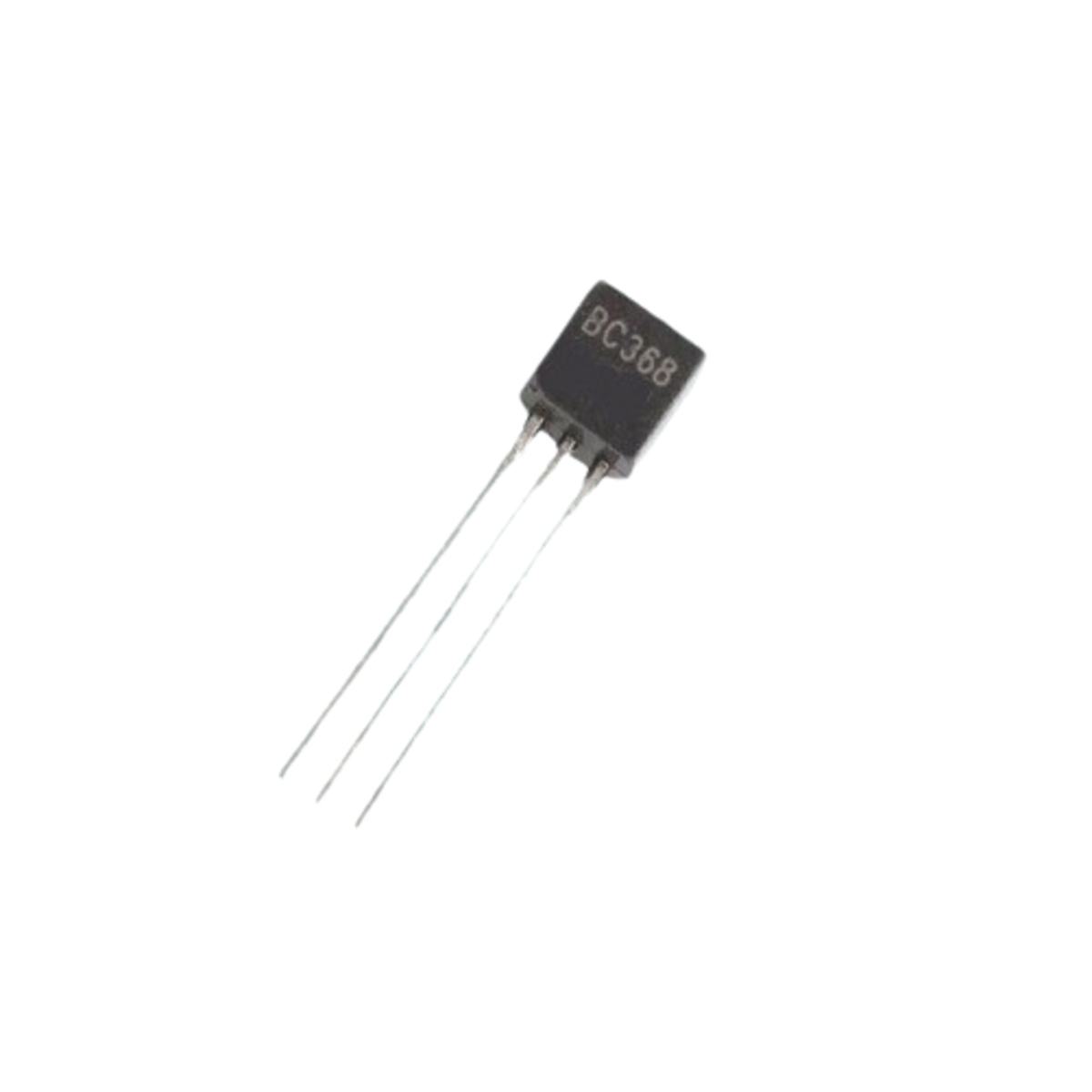

BC368 General Purpose NPN Transistor – TO-92 Package

The BC368 is a general-purpose NPN bipolar junction transistor (BJT) designed for amplification and switching applications in low- to medium-power electronic circuits. With its reliable performance, good current gain, and compact TO-92 package, it is suitable for driver stages, audio amplifiers, control circuits, signal processing applications, and general-purpose electronic designs.

Key Features -

• General-purpose NPN transistor

• Suitable for amplification and switching applications

• Silicon transistor technology

• Compact TO-92 through-hole package

• Good current gain and switching performance

• Reliable and stable electrical characteristics

• Easy PCB mounting and integration

Specifications -

• Product type - Bipolar Junction Transistor (BJT)

• Part number - BC368

• Transistor polarity - NPN

• Technology - Silicon

• Package type - TO-92

• Mounting type - Through Hole

• Number of pins - 3

• Collector-Emitter Voltage (VCEO) - 20V

• Collector-Base Voltage (VCBO) - 25V

• Emitter-Base Voltage (VEBO) - 5V

• Maximum Collector Current (IC) - 1A

• Power Dissipation - 625mW

• Transition Frequency (fT) - 100MHz

• Operating Temperature Range - -55°C to +150°C

Applications -

• Driver circuits

• Audio amplifier stages

• Relay and solenoid drivers

• LED control circuits

• Power switching applications

• Industrial control equipment

• Educational and DIY electronics projects
