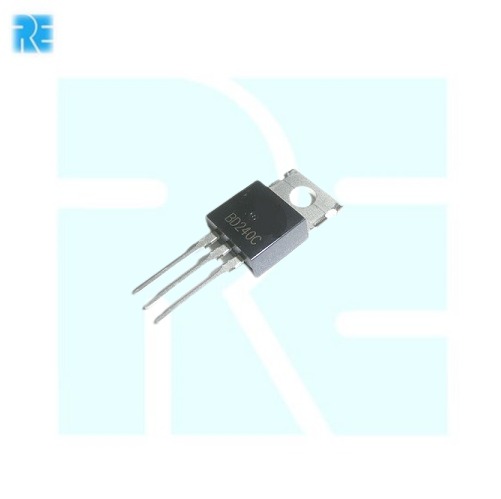

BD240C Silicon Power PNP Transistor (TO-220 Package)

The BD240C is a silicon power PNP bipolar junction transistor designed for power amplification, switching, and driver applications. Its TO-220 through-hole package supports PCB mounting and heatsink installation, making it suitable for audio amplifier stages, power control circuits, and electronic equipment. The transistor can be used in complementary output stages and other circuits requiring a PNP power device, subject to its electrical ratings and thermal requirements.

Key Features -

• Silicon power PNP bipolar junction transistor

• Designed for power amplification and switching

• TO-220 through-hole package

• Suitable for driver and output stages

• Supports heatsink mounting for thermal management

• Suitable for complementary transistor circuits

• Designed for power control and electronic applications

Specifications -

• Product Type: Bipolar Junction Transistor (BJT)

• Part Number: BD240C

• Transistor Polarity: PNP

• Semiconductor Material: Silicon

• Package Type: TO-220

• Mounting Type: Through Hole

• Number of Pins: 3

• Transistor Configuration: Single

• Collector-Emitter Voltage: Verify the exact rating in the manufacturer's datasheet

• Collector Current: Verify the exact rating in the manufacturer's datasheet

• DC Current Gain (hFE): Depends on operating conditions and manufacturer specifications

• Power Dissipation: Depends on the manufacturer's rating and thermal conditions

• Pin Configuration: Verify the datasheet for the exact manufacturer and package

Applications -

• Audio power amplifier circuits

• Power switching circuits

• Driver stages for power devices

• Complementary output stages

• Power supply control circuits

• Industrial electronic equipment

• Electronic repair and prototyping projects
