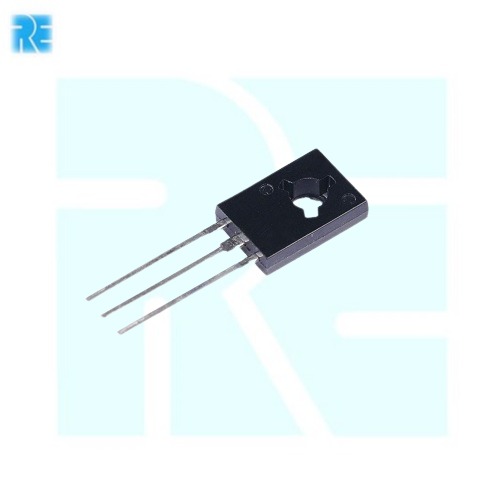

BD680 PNP Darlington Power Transistor (TO-126 Package)

The BD680 is a PNP Darlington power transistor designed for switching, driver stages, and power control applications. Its Darlington configuration provides high current gain, allowing a relatively small base current to control a larger collector current. The TO-126 through-hole package supports PCB mounting in electronic control circuits, actuator drivers, and other power switching applications. Verify the electrical ratings and pin configuration against the manufacturer's datasheet before use.

Key Features -

• PNP Darlington power transistor

• High current gain for driver applications

• Designed for switching and power control circuits

• TO-126 through-hole package

• Three-terminal transistor configuration

• Suitable for electronic control and driver stages

• Requires appropriate biasing and thermal management

Specifications -

• Product Type: Bipolar Junction Transistor (BJT)

• Part Number: BD680

• Transistor Polarity: PNP

• Transistor Configuration: Darlington

• Package Type: TO-126

• Mounting Type: Through Hole

• Number of Pins: 3

• Collector-Emitter Voltage: Verify according to the manufacturer's datasheet

• Maximum Collector Current: Verify according to the manufacturer's datasheet

• DC Current Gain (hFE): Depends on operating conditions and manufacturer specifications

• Power Dissipation: Verify according to the manufacturer's datasheet and thermal conditions

• Pin Configuration: Verify the exact manufacturer's datasheet before installation

Applications -

• Power switching circuits

• Relay and solenoid driver stages

• Motor and actuator control

• Electronic power control systems

• Industrial control equipment

• Embedded system output drivers

• Electronic repair and prototyping projects
