BF3503AA 350 Ohm Foil Strain Gauge Sensor (Resistance Strain Gauge)
The BF3503AA Strain Gauge Sensor is a resistive foil sensor designed to measure mechanical strain in materials and structures. When the sensor is bonded to a surface, stretching or compression causes a small change in its electrical resistance. This change can be measured using a suitable signal conditioning circuit to determine strain.
With a nominal resistance of 350 Ohm, this strain gauge is suitable for bridge measurement circuits and experimental setups involving force, deformation and structural testing. It can be used in load measurement prototypes, mechanical engineering projects and industrial instrumentation.
Key Features -
• Nominal resistance of 350 Ohm
• Foil type resistive sensing element
• Detects small mechanical strain through resistance changes
• Suitable for Wheatstone bridge measurement circuits
• Compact sensing element for surface mounting
• Compatible with suitable strain gauge signal conditioning circuits
Specifications -
• Sensor Type: Foil resistance strain gauge
• Model: BF3503AA
• Nominal Resistance: 350 Ohm
• Resistance Tolerance: Plus or minus 1 percent, as specified
• Gauge Factor: Approximately 2.0 to 2.2, as specified
• Strain Limit: Approximately 2 percent, as specified
• Operating Temperature: Negative 30 C to positive 80 C, as specified
• Grid Material: Constantan foil, as specified

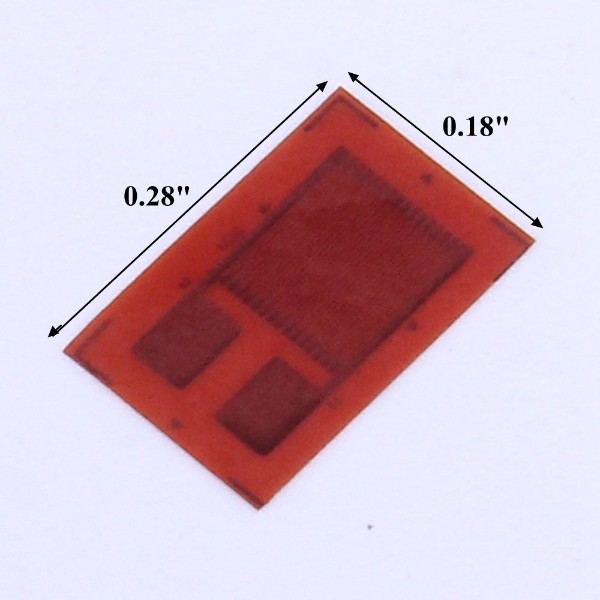

• Approximate Size: 7 mm x 5 mm, as specified
• Output Type: Resistance change proportional to applied strain
• Installation: Bonding to a suitable test surface using an appropriate strain gauge adhesive
Confirm the exact dimensions, gauge factor, strain limit and temperature range against the supplier datasheet before design or installation.
Applications -
• Load cell development and testing
• Weighing system prototypes
• Structural strain and stress analysis
• Force measurement experiments
• Mechanical material testing
• Engineering laboratory projects
• Industrial instrumentation and embedded measurement systems
