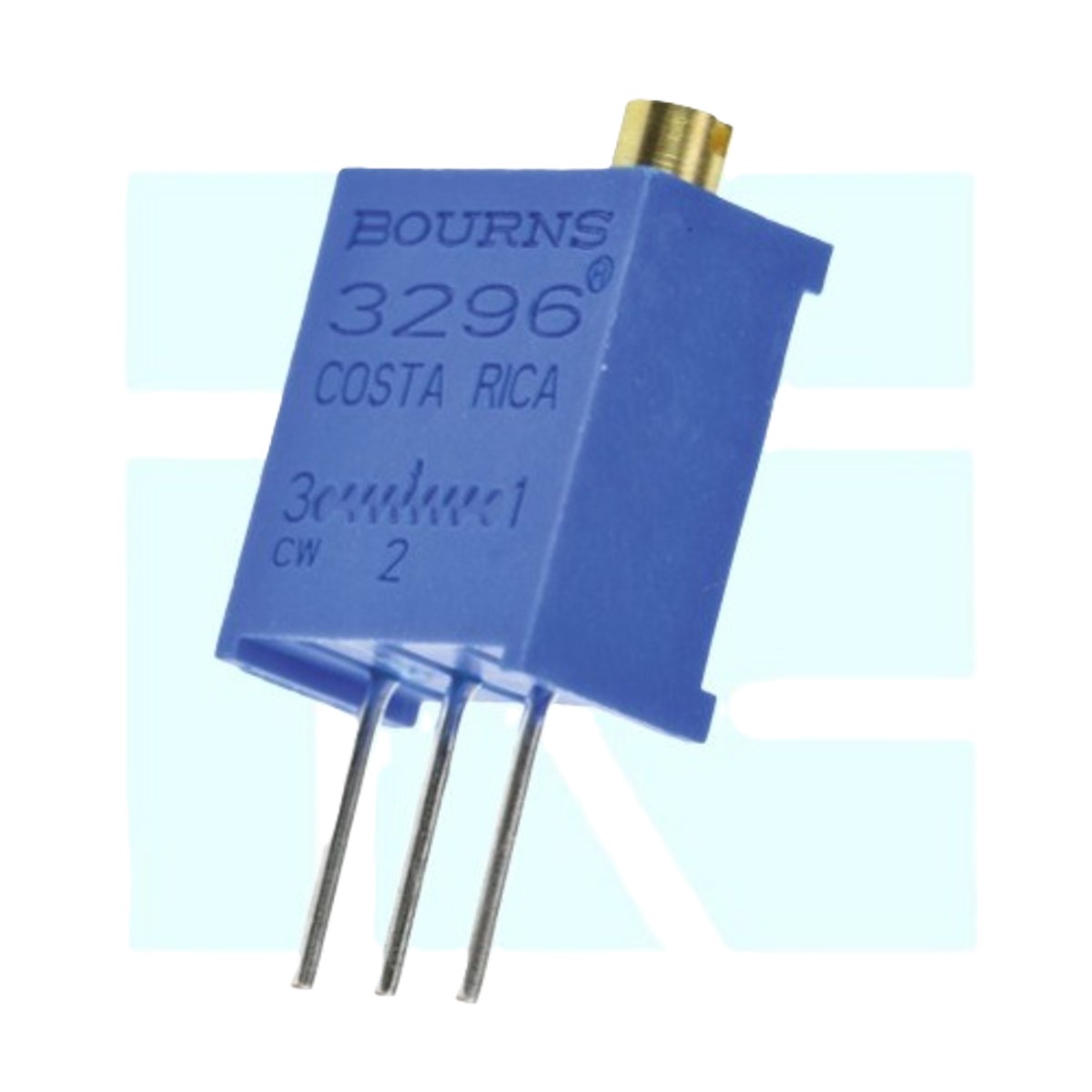

Bourns 500 Ohm 3296W-1-501LF Multi Turn Trimmer Potentiometer (3296W Trimpot)

The Bourns 3296W-1-501LF is a precision 500 Ohm multi-turn trimmer potentiometer designed for calibration, tuning, voltage adjustment, signal conditioning, and circuit trimming applications. Its multi-turn adjustment mechanism allows accurate resistance setting and fine control, making it ideal for instrumentation, industrial electronics, power supplies, test equipment, and embedded systems.

Manufactured by Bourns, this trimpot features a cermet resistive element and sealed construction for excellent stability, reliability, and long operational life.

Key Features -

• 500 Ohm resistance value

• Multi-turn precision adjustment

• Bourns 3296W series trimpot

• Cermet resistive element

• High adjustment accuracy

• Sealed construction for reliability

• Through-hole PCB mounting

Specifications -

• Product type - Trimmer Potentiometer

• Model - 3296W-1-501LF

• Manufacturer - Bourns

• Resistance value - 500 Ohm

• Resistance code - 501

• Adjustment type - Multi Turn

• Element type - Cermet

• Mounting type - Through Hole Mount

• Terminal style - PCB Pins

• Orientation - Top Adjust

• Application - Precision Circuit Calibration

Applications -

• Voltage calibration circuits

• Power supply adjustment

• Signal conditioning systems

• Test and measurement equipment

• Industrial control electronics

• Sensor calibration circuits

• Embedded electronic projects
