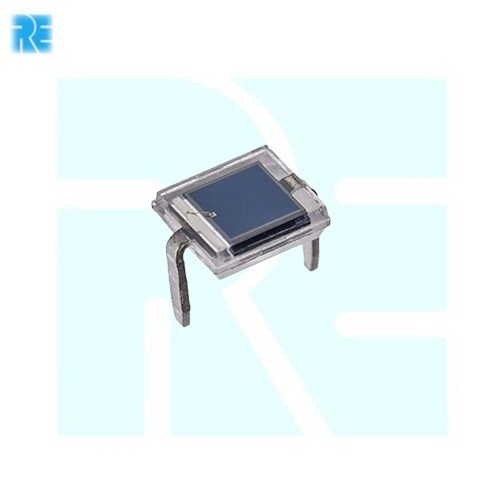

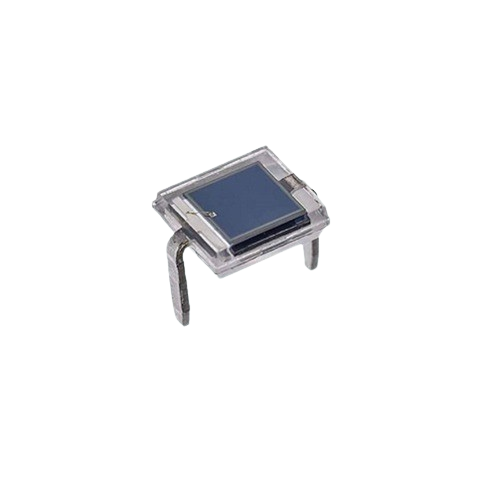

BPW34 Silicon PIN Photodiode Sensor DIP2 (BPW34 Photodiode)
The BPW34 Silicon PIN Photodiode Sensor is a high speed and high sensitivity optical sensor designed to detect visible and near infrared light. It operates using a PIN photodiode structure, converting incident light into a proportional electrical current. The device features a large active area and fast response time, making it suitable for precision light detection and high speed optical applications.
The BPW34 photodiode is widely used in India for optical sensing, light measurement systems, industrial electronics, and embedded systems. It is valued for its wide spectral response, low dark current, and reliable performance in applications such as light meters, IR detection, and communication systems.
Key Features
- Silicon PIN Photodiode: High speed light detection
- Wide Spectral Response: Detects visible and near infrared light
- High Sensitivity: Large active area for better signal capture
- Fast Response Time: Suitable for high speed applications
- Low Dark Current: Improved accuracy and low noise
- Suitable for Industrial Electronics and Embedded Systems
Specifications
- Sensor Type: Silicon PIN photodiode
- Spectral Range: Approx 430nm to 1100nm
- Peak Sensitivity: Around 850nm to 900nm
- Active Area: Approx 7.5mm2
- Dark Current: Approx 2nA
- Reverse Voltage: Up to 60V
- Viewing Angle: Wide angle approx 120 to 130 degree
- Package Type: DIP 2
- Mounting Type: Through hole
- Applications: Light sensing optical communication IR detection industrial electronics embedded systems
Pinout Configuration DIP2 Layout
