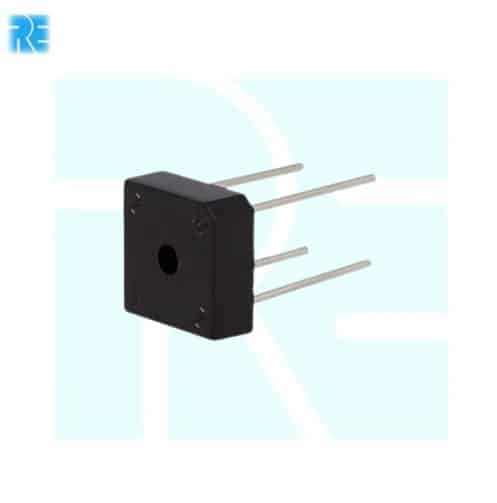

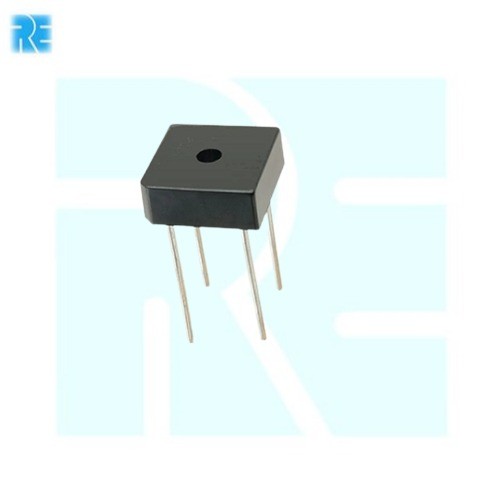

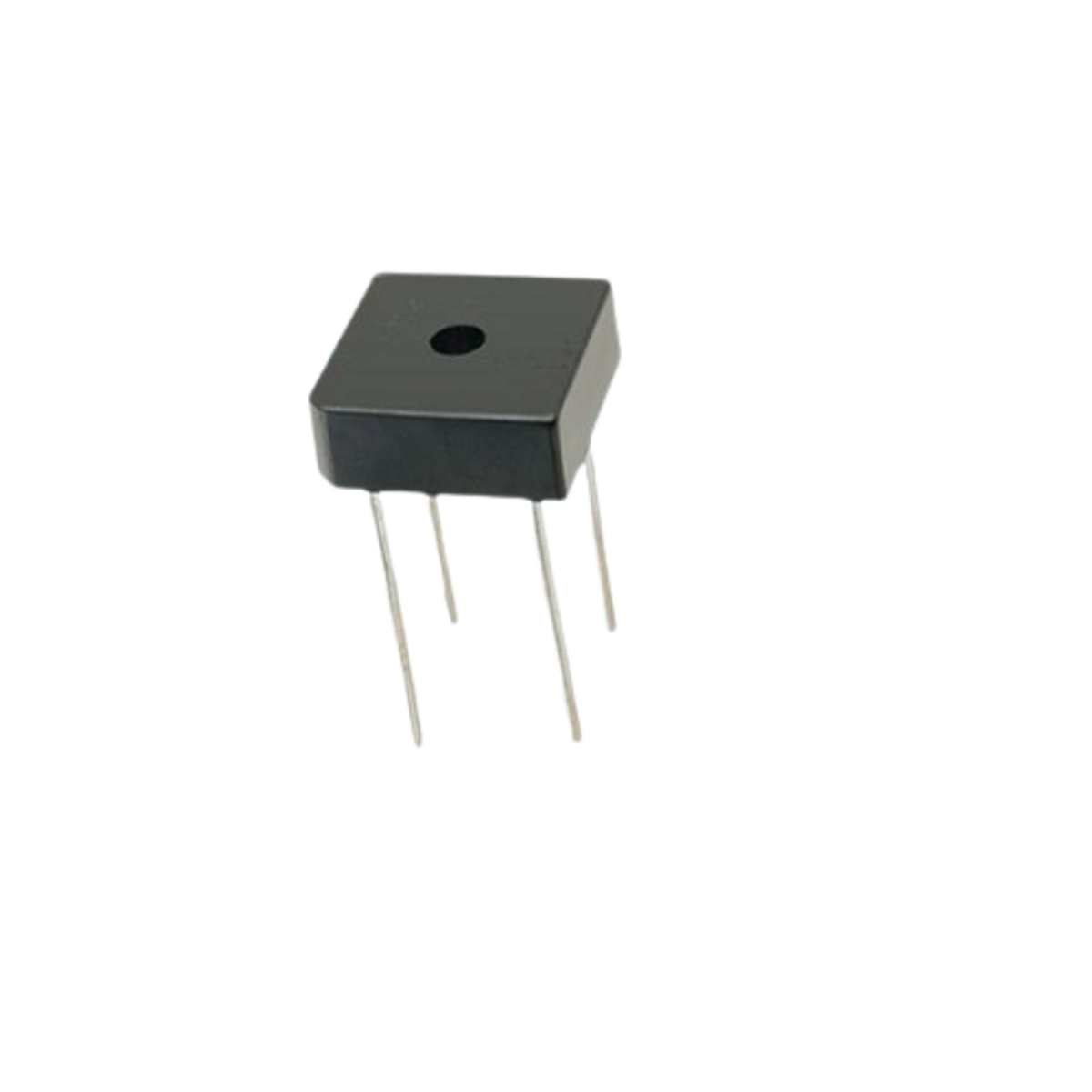

BR1010 Bridge Rectifier 10A 1000V (Single Phase Bridge Rectifier)

The BR1010 Bridge Rectifier is a high-performance single-phase full-wave bridge rectifier designed for efficient AC to DC conversion in power supply and rectification applications. Rated for a maximum average forward current of 10A and a peak reverse voltage of 1000V, it is ideal for high-power battery chargers, SMPS, industrial power supplies, motor controllers, welding equipment, LED power supplies, and general electronic circuits.

Its robust bridge rectifier package provides excellent electrical performance, high surge current capability, and efficient heat dissipation, making it suitable for continuous operation in demanding industrial and commercial environments.

Key Features -

• Single-phase full-wave bridge rectifier

• Maximum average forward current of 10A

• Peak reverse voltage of 1000V

• High surge current capability

• Low forward voltage drop

• Reliable AC to DC conversion

• Durable bridge rectifier package

• Suitable for continuous operation

• Easy through-hole mounting

Specifications -

• Product Type: Bridge Rectifier

• Model: BR1010

• Rectifier Type: Single-Phase Full-Wave Bridge Rectifier

• Maximum Average Forward Current: 10A

• Peak Reverse Voltage: 1000V

• Mounting Type: Through Hole

• Number of Pins: 4

Applications -

• AC to DC power supplies

• Battery chargers

• Switching mode power supplies (SMPS)

• Industrial power supplies

• Motor control circuits

• Welding equipment

• LED power supplies

• Power adapters

• DIY electronic projects
