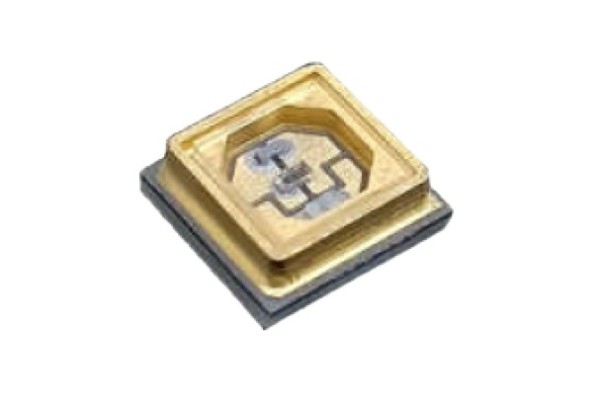

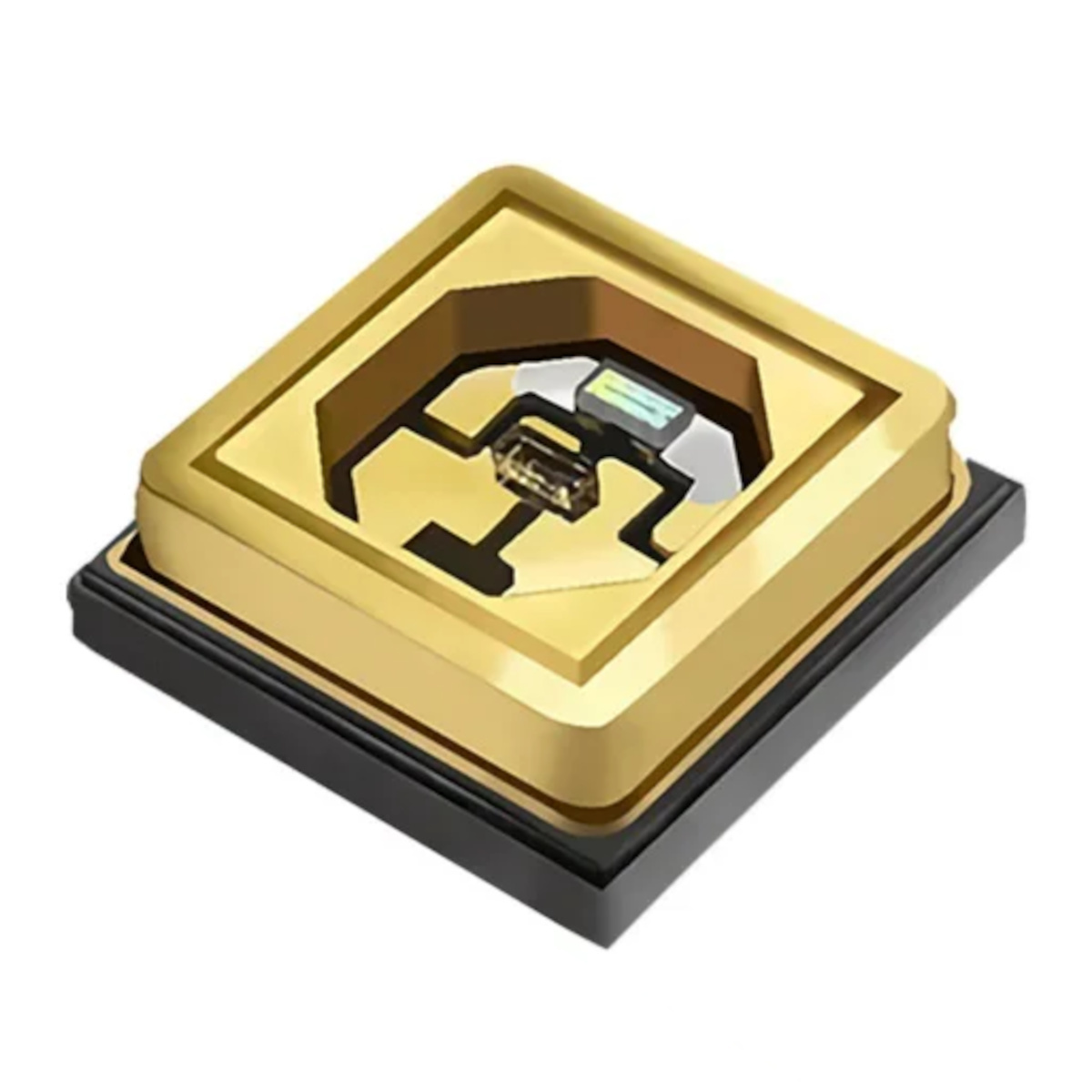

BSX-3535WCFW-R0 3535 SMD UV LED 365nm Ultraviolet Light Emitting Diode High Power 3535 Package (3535 LED)
The BSX-3535WCFW-R0 is a high power 3535 SMD ultraviolet light emitting diode designed for compact PCB integration in UV curing detection and industrial inspection systems. It provides stable UV output with efficient thermal performance suitable for continuous operation.
Key Features -
- Ultraviolet emission wavelength approx 365nm typical
- High power 3535 SMD LED package
- Forward current up to approx 350mA typical
- High optical output with stable performance
- Good thermal dissipation design
- Suitable for automated reflow soldering
Specifications -
- Peak wavelength - approx 365nm UV range
- Forward current - approx 350mA typical
- Forward voltage - approx 3.2V to 3.8V
- Power dissipation - approx 1W to 3W
- Package type - 3535 SMD LED
- Viewing angle - approx 120 degree
- Operating temperature - approx -20 to 85 degree C
Applications -
- UV curing systems for industrial adhesives and inks
- UV printing and coating systems
- Currency and document verification
- UV sterilization and disinfection equipment
- Fluorescence detection and inspection systems
Pinout Configuration -
- Anode - positive terminal pad marking
- Cathode - negative terminal pad
Working Principle -
The BSX-3535WCFW-R0 UV LED emits ultraviolet light when forward biased current flows through the semiconductor junction. The UV output intensity depends on forward current and thermal conditions and is used in curing detection and sterilization applications.
