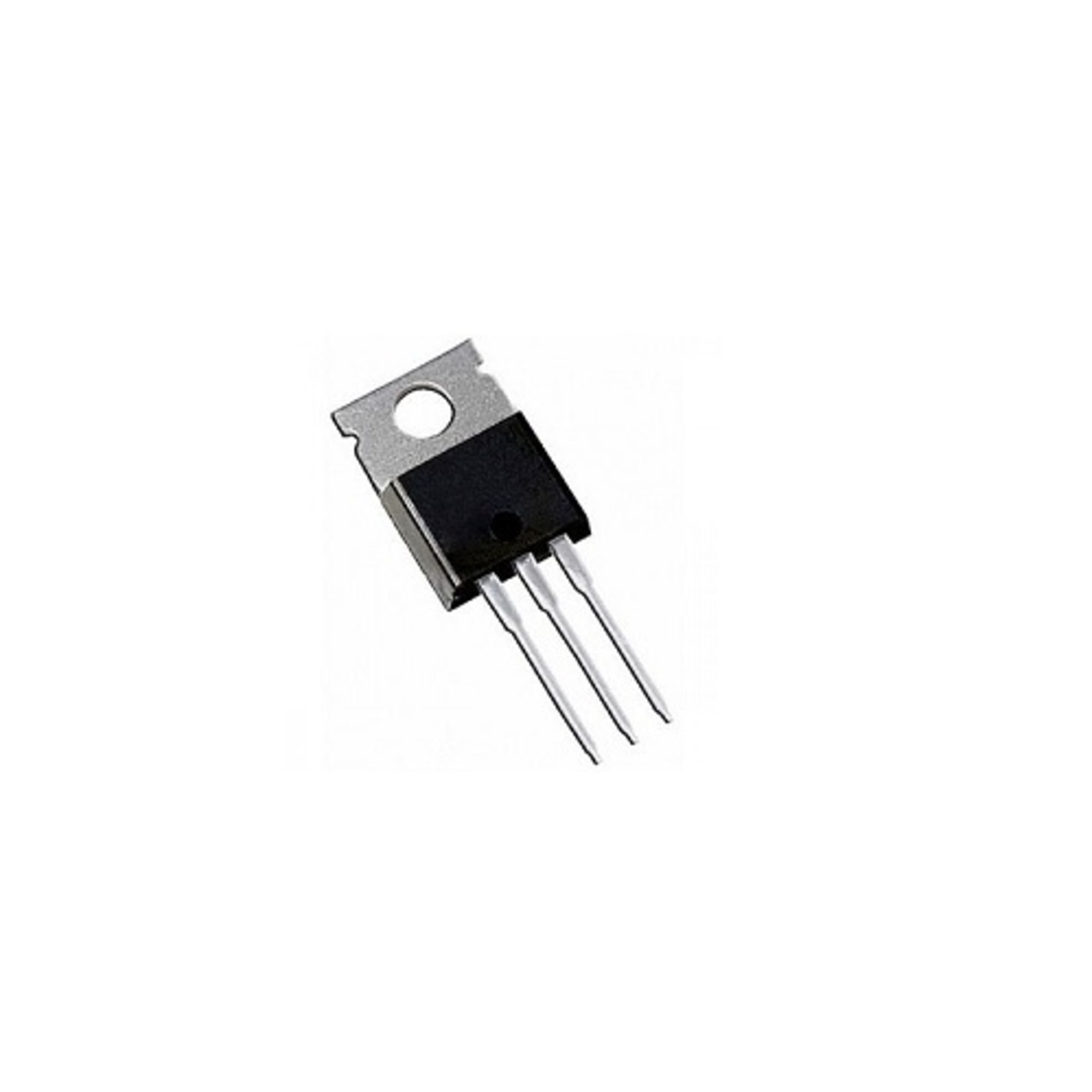

BTA12-600 TRIAC 600V 12A TO-220 ST Make (BTA12-600 TRIAC)

The BTA12-600 is a high-performance TRIAC designed for AC power control and switching applications. Manufactured by ST, it features a 12A RMS current rating and 600V peak off-state voltage, making it suitable for light dimmers, motor speed controllers, heater controls, solid-state relays, and industrial automation systems. The TO-220 package offers efficient heat dissipation and easy mounting.

Key Features -

• ST Make TRIAC

• 12A RMS on-state current

• 600V peak off-state voltage

• Bidirectional AC switching

• Low gate trigger current

• High surge current capability

• TO-220 through-hole package

Specifications -

• Product type - TRIAC

• Model - BTA12-600

• Manufacturer - ST

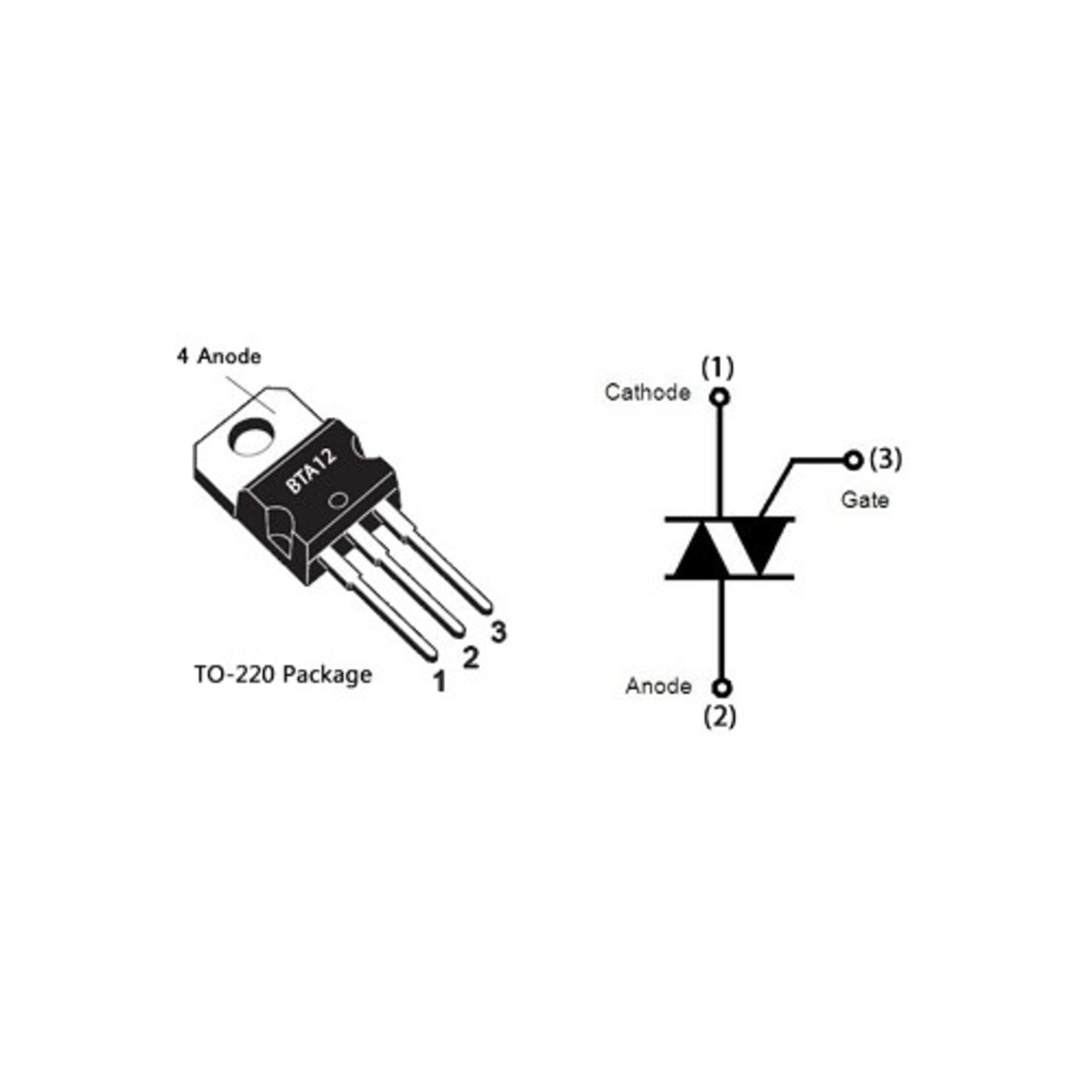

• Package type - TO-220

• Mounting type - Through Hole Mount

• Output type - Two-Way Thyristor

• Current - On State It(RMS) - 12A

• Peak Off-State Voltage VDRM - 600V

• Holding Current Ih - 20mA

• Gate Trigger Current IGT - 30mA

• Gate Trigger Voltage VGT - 1.5V

• On-State Voltage VTM - 1.4V

• Average Gate Power Dissipation PG(AV) - 500mW

• Operating Temperature - -40C to +125C

Applications -

• Light dimmer circuits

• Fan speed controllers

• AC motor control

• Heater control systems

• Solid-state relays

• Home appliances

• Industrial automation equipment
