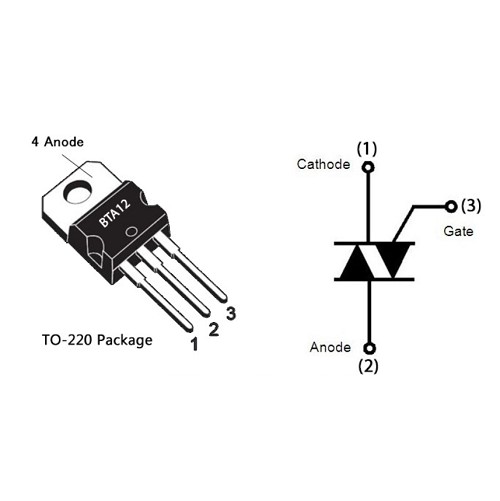

BTA12-600 TRIAC 600V 12A Through Hole TO-220 (Bidirectional Thyristor for AC Load Control and Switching Applications)

The BTA12-600 TRIAC is designed for AC power control, switching, and load management applications requiring reliable bidirectional current control. It provides efficient switching performance for lighting control, motor control, and industrial power applications.

Key Features -

• High current 12A TRIAC design

• Supports peak off state voltage up to 600V

• Bidirectional switching capability

• TO-220 package for efficient heat dissipation

• Low gate trigger current requirement

• Suitable for AC load control applications

Specifications -

• Product type - TRIAC Bidirectional Thyristor

• Model - BTA12-600

• Package type - TO-220

• Mounting type - Through Hole

• Voltage rating - 600V

• Current rating - 12A RMS On State Current

• Frequency - Suitable for AC switching applications

• Material - Silicon Semiconductor

• Additional features - Gate trigger voltage 1.5V, gate trigger current 30mA, holding current 20mA, on state voltage 1.4V, operating temperature -40°C to +125°C, gate power dissipation 500mW

Applications -

• AC motor speed controllers

• Light dimmer circuits

• Heater control systems

• Industrial automation equipment

• Home appliance control circuits
