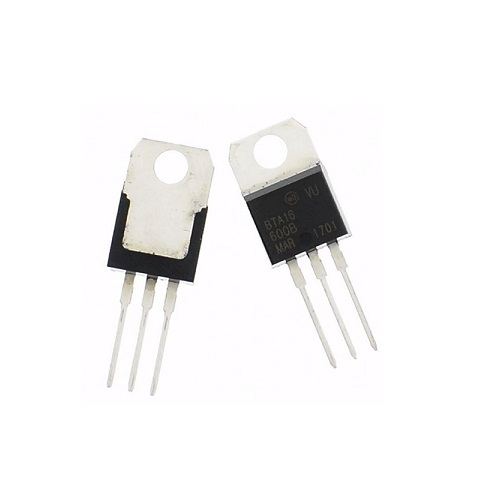

STMicroelectronics BTA16-600B TRIAC (600V, 16A, TO 220AB)

The STMicroelectronics BTA16-600B is a 600V 16A bidirectional TRIAC designed for AC power switching, phase control and load regulation applications. Featuring an insulated TO 220AB package, this thyristor provides reliable switching performance in motor controllers, light dimmers, heating systems and industrial electronic equipment. Its 16A RMS on-state current rating and 600V repetitive peak off-state voltage make it suitable for controlling AC loads using an appropriate gate triggering circuit.

Key Features -

• STMicroelectronics BTA16-600B power TRIAC

• 600V repetitive peak off-state voltage

• 16A RMS on-state current rating

• Bidirectional AC switching operation

• 4A peak gate current rating

• 20W peak gate power rating

• Insulated TO 220AB package

• Gate controlled semiconductor switching

• Suitable for AC phase angle control

• Supports motor speed and heater regulation

• Suitable for industrial power switching

• Designed for heatsink mounting

Specifications -

• Brand: STMicroelectronics

• Manufacturer Part Number: BTA16-600B

• Product Type: TRIAC Thyristor

• Semiconductor Type: Bidirectional Triode Thyristor

• Repetitive Peak Off-State Voltage: 600V

• RMS On-State Current: 16A

• Peak Gate Current: 4A

• Peak Gate Power: 20W

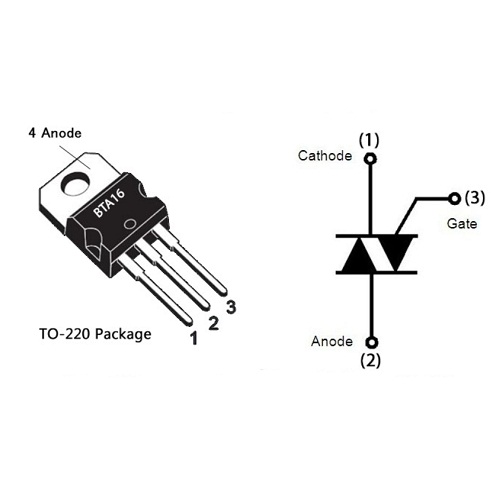

• Package Type: TO 220AB

• Package Construction: Insulated Tab

• Mounting Type: Through Hole

• Number of Terminals: 3

• Main Terminals: MT1 and MT2

• Control Terminal: Gate

• Switching Type: Bidirectional AC Switching

• Application: AC Power Control and Load Switching

Applications -

• AC motor speed controllers

• Light dimmer circuits

• Electric heater controllers

• Fan speed regulators

• Industrial AC switching systems

• Temperature control equipment

• Household appliance control circuits

• AC power regulators

• Solid state switching circuits

• Industrial automation equipment

• Electronic power control systems

• Phase angle control circuits
