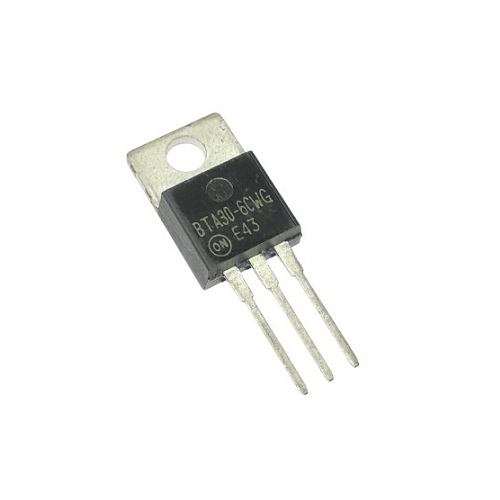

BTA30-600CW3G TRIAC (30A 600V TO-220AB Insulated Through Hole Thyristor)

The BTA30-600CW3G TRIAC is a high-performance bidirectional thyristor designed for efficient AC power switching and phase control applications. With a 30A RMS on-state current rating, 600V repetitive peak off-state voltage, and an electrically insulated TO-220AB package, it is ideal for motor control, lighting dimmers, heater control, solid-state relays, and industrial power switching circuits.

Key Features -

• 30A RMS on-state current rating

• 600V repetitive peak off-state voltage

• Bidirectional AC switching

• Electrically insulated TO-220AB package

• High surge current capability

• Low gate trigger current for efficient control

• Suitable for phase angle control

• Reliable thermal performance

• Through Hole mounting

• Designed for industrial and consumer AC power applications

Specifications -

• Product Type - TRIAC

• Model - BTA30-600CW3G

• Device Type - Bidirectional Thyristor

• Repetitive Peak Off-State Voltage (VDRM) - 600V

• RMS On-State Current (IT(RMS)) - 30A

• Mounting Type - Through Hole

• Package Type - TO-220AB Insulated

• Polarity - Bidirectional

• Terminal Configuration - TO-220AB 3-Pin

• Compatibility - Through Hole Printed Circuit Board assemblies

Applications -

• AC motor speed controllers

• Light dimmer circuits

• Electric heater controllers

• Solid-state relays

• Fan speed regulators

• Home appliance control

• Industrial automation equipment

• AC power switching

• Temperature control systems

• Printed Circuit Board power control applications
