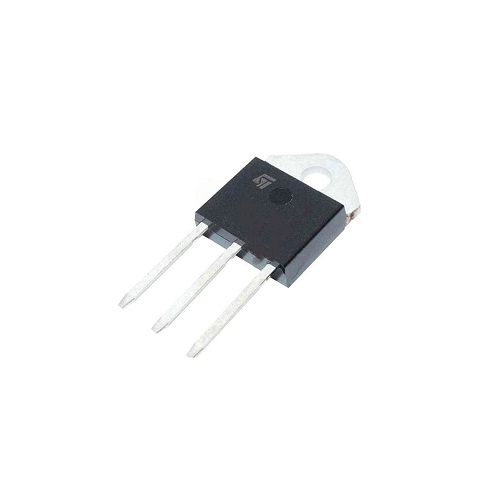

BTA41-600B 600V 41A TRIAC (High Power Bidirectional Thyristor for AC Switching & Control)

The BTA41-600B is a high-power bidirectional TRIAC designed for switching and controlling AC loads. With a repetitive peak off-state voltage of 600V and an RMS on-state current rating of 41A, it is suitable for industrial AC switching, motor control, heating control, lighting systems, and high-power electronic applications.

Key Features -

• High-power bidirectional TRIAC

• 600V repetitive peak off-state voltage

• 41A RMS on-state current rating

• Suitable for high-current AC load control

• Reliable switching performance

• Electrically insulated package design

• Suitable for phase control and ON/OFF switching

Specifications -

• Product type - TRIAC

• Part number - BTA41-600B

• Device type - Bidirectional Thyristor

• Repetitive peak off-state voltage VDRM - 600V

• Repetitive peak reverse voltage VRRM - 600V

• RMS on-state current IT(RMS) - 41A

• Gate trigger current IGT - 50mA Max.

• Surge current ITSM - 400A

• Maximum junction temperature - +125°C

• Package type - TOP3 Insulated

• Mounting type - Through-Hole

• Number of terminals - 3

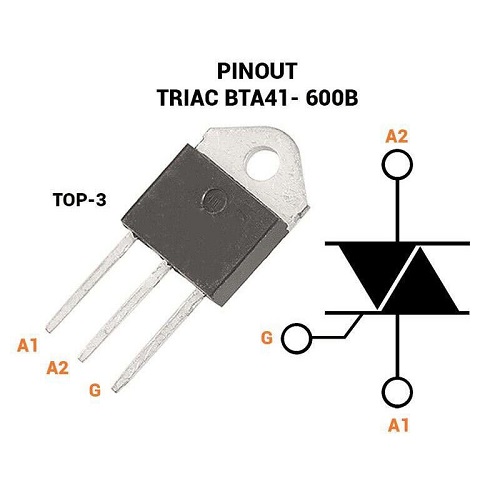

• Terminals - MT1, MT2 and Gate

Applications -

• AC motor speed controllers

• Industrial AC switching

• Heater and temperature controllers

• Lighting dimmer circuits

• Solid-state switching systems

• Power control equipment

• Home appliances

• Industrial automation systems
