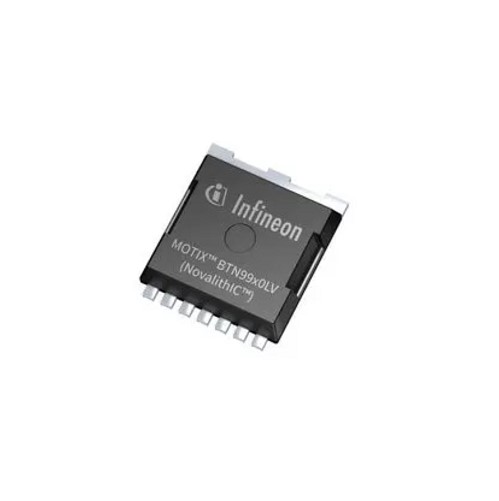

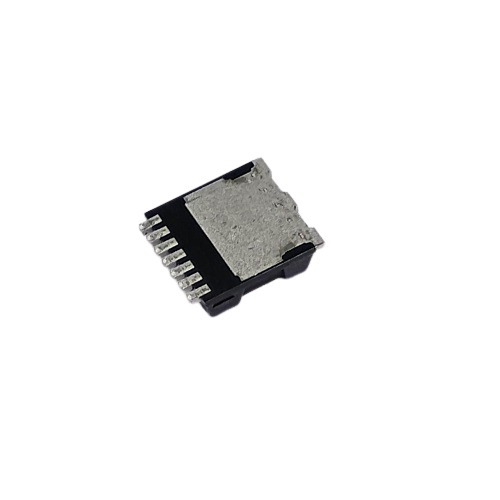

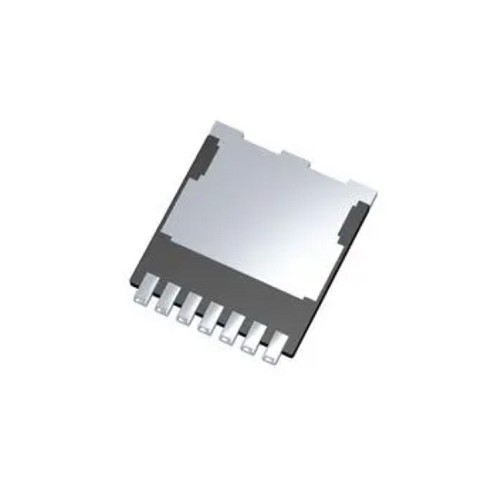

BTN9960LVAUMA1 Motor Driver Half-Bridge IC HSOF-7 (Automotive Smart Power Driver for DC Motor Control Applications)

The BTN9960LVAUMA1 is a high performance smart half-bridge motor driver IC designed for automotive and industrial DC motor control applications. It integrates advanced protection features, current sensing, and selectable slew rates, making it ideal for reliable and efficient motor driving systems.

Key Features -

• Automotive AEC-Q100 Grade 1 qualified device

• Wide operating supply voltage range from 8V to 18V

• Integrated half-bridge motor driver architecture

• Built-in current sensing and diagnostic feedback

• Eight selectable switching slew rates for EMI optimization

• Integrated protection against overcurrent, undervoltage, and overtemperature

Specifications -

• Product type - Half-Bridge Motor Driver IC

• Model - BTN9960LVAUMA1

• Package type - HSOF-7-1

• Mounting type - Surface Mount Device (SMD)

• Supply voltage - 8V to 18V

• Output type - Single Half-Bridge Output

• Operating current - 2.3mA Typical Supply Current

• Operating temperature - -40°C to +150°C Junction Temperature

• ON-state high-side resistance - 6.3mΩ Typical

• Path resistance - 9.7mΩ Typical

• Overcurrent detection level - 35A Minimum

• Quiescent current - 3.3µA Maximum

• Additional features - Current sense feedback, temperature monitoring, status flag diagnostics, low power consumption, automotive qualified design

Applications -

• DC brushed motor control

• Automotive actuator systems

• Power window control modules

• Seat adjustment systems

• Industrial motor drive applications

• Robotics and automation systems
