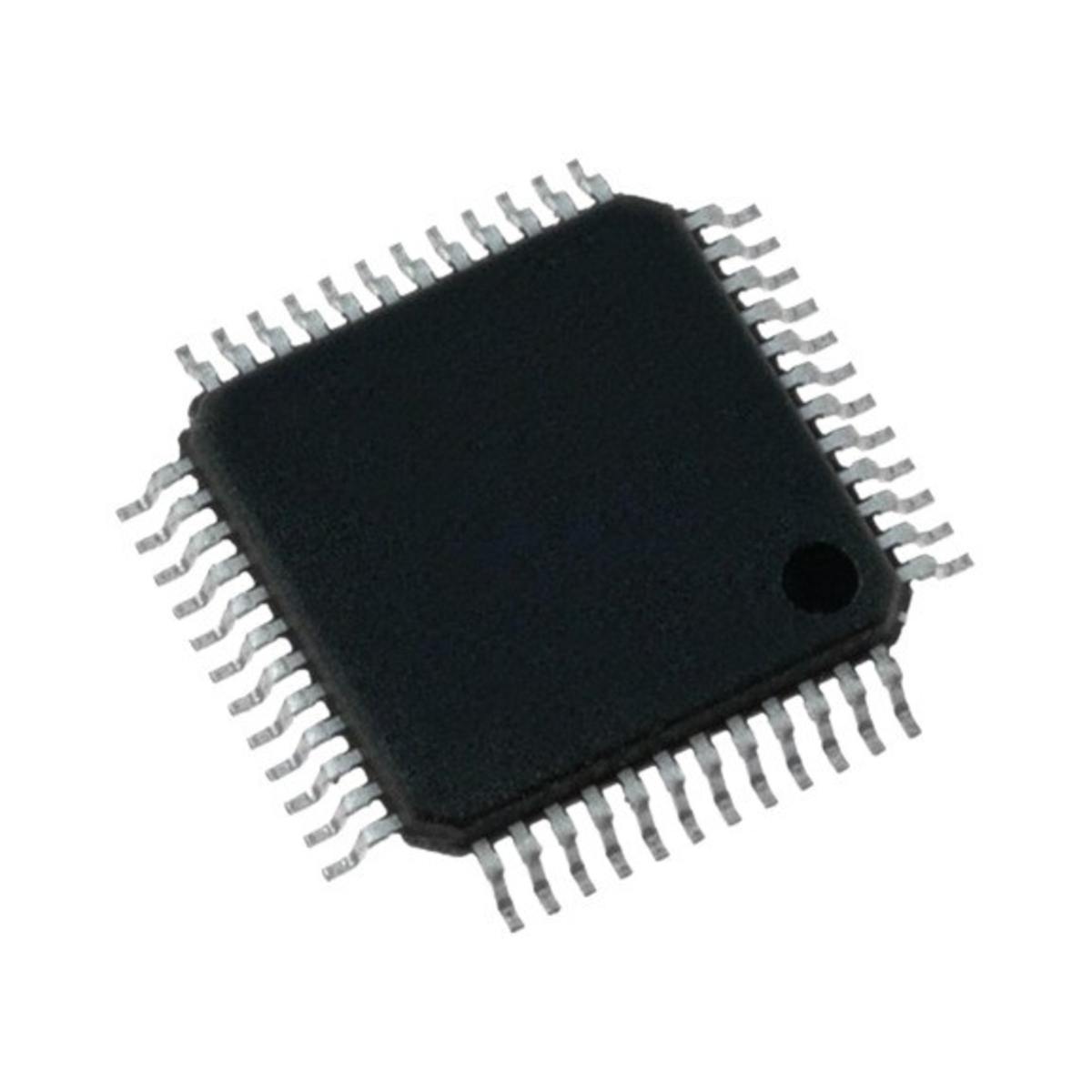

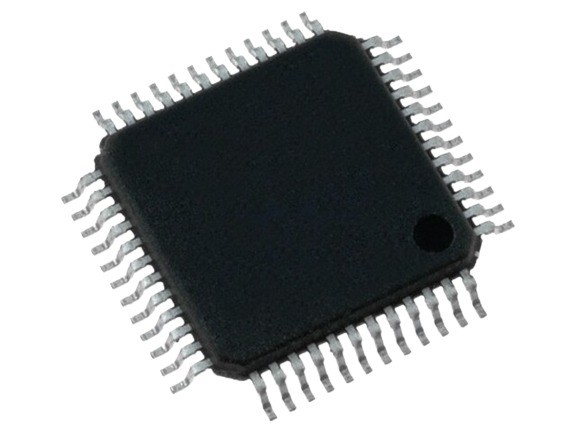

C8051F340 Silicon Labs 8 Bit USB Microcontroller IC (TQFP 48, 1 Qty)

The C8051F340 Silicon Labs USB Microcontroller IC is a high performance 8 bit microcontroller designed for USB enabled embedded systems, industrial automation, instrumentation and electronic control applications. Featuring an enhanced 8051 compatible core, integrated USB 2.0 Full Speed controller and on chip Flash program memory, this microcontroller provides efficient processing and reliable communication in a compact TQFP 48 surface mount package.

The C8051F340 integrates a high speed processor, analog to digital converter, programmable timers, digital input and output pins, and multiple serial communication interfaces. Its integrated USB functionality reduces external component requirements, making it suitable for USB communication devices, data acquisition systems, industrial controllers and custom embedded electronics.

Key Features -

• Silicon Labs C8051F340 USB microcontroller IC

• High performance 8 bit 8051 compatible architecture

• High speed pipelined 8051 processor core

• Maximum system clock frequency of 48MHz

• Integrated USB 2.0 Full Speed controller

• USB data transfer rate up to 12Mbps

• 64KB on chip Flash program memory

• 4352 bytes internal RAM

• Integrated 10 bit analog to digital converter

• Multiple programmable timer modules

• UART serial communication interface

• SPI communication interface

• SMBus and I2C compatible communication support

• Programmable digital input and output pins

• Integrated precision oscillator

• On chip debugging support

• Low power CMOS design

• Compact TQFP 48 surface mount package

• Suitable for USB enabled embedded applications

• Pack Quantity: 1 Qty

Specifications -

• Brand: Silicon Labs

• Part Number: C8051F340

• Product Type: USB Microcontroller IC

• Microcontroller Family: C8051F34x

• Core Architecture: Enhanced 8 Bit 8051

• Maximum Clock Frequency: 48MHz

• Program Memory Type: Flash

• Flash Memory Capacity: 64KB

• Internal RAM: 4352 Bytes

• USB Interface: USB 2.0 Full Speed

• USB Data Rate: Up to 12Mbps

• ADC Resolution: 10 Bit

• ADC Channels: Multiplexed Analog Inputs

• Communication Interfaces: USB, UART, SPI and SMBus

• I2C Compatibility: SMBus Interface

• Timer Modules: Integrated Programmable Timers

• Oscillator: Integrated Internal Oscillator

• Debug Interface: On Chip Debug Support

• Operating Voltage: 2.7V to 3.6V DC

• Package Type: TQFP 48

• Number of Pins: 48

• Mounting Type: Surface Mount

• Logic Technology: CMOS

• Application: USB Communication and Embedded Control

• Pack Quantity: 1 Qty (1 Piece)

Applications -

• USB enabled embedded systems

• USB communication interface devices

• Industrial automation equipment

• Electronic instrumentation

• Data acquisition systems

• USB based sensor interfaces

• Embedded control systems

• Consumer electronic devices

• Computer peripheral controllers

• USB data logging equipment

• Electronic measurement instruments

• Industrial monitoring systems

• Custom USB interface development

• Microcontroller based control boards

• Electronic prototyping and research

• Embedded system development projects
