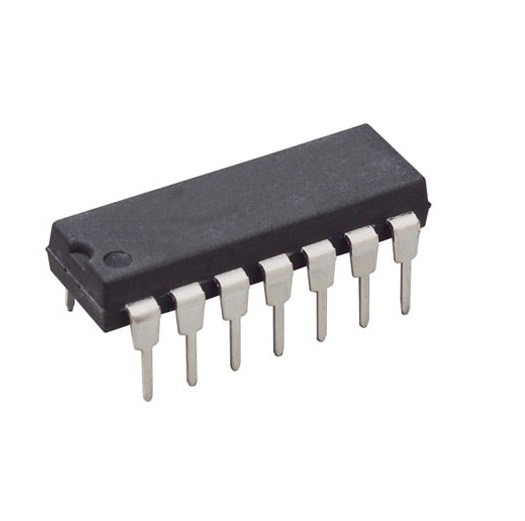

CD4000 CMOS Logic IC (DIP Package, Digital Logic)

The CD4000 is a CMOS digital logic IC belonging to the CD4000 logic family. Devices in this family are designed for low power digital operation and are available in different logic configurations. The exact function depends on the specific IC number, as the CD4000 family includes logic gates, counters, flip flops, multiplexers, and other digital circuits.

Key Features -

• CMOS digital logic technology

• Low power consumption

• Wide supply voltage range, depending on the specific device

• High noise immunity

• Suitable for digital logic and control circuits

• DIP package for through hole mounting

Specifications -

• IC Type: CMOS Digital Logic IC

• Series: CD4000

• Supply Voltage: 3V to 15V, depending on the specific device

• Package Type: DIP

• Mounting Type: Through Hole

• Operating Temperature: Negative 40 C to positive 85 C (verify the specific manufacturer's datasheet)

• Logic Function: Depends on the exact IC model

Applications -

• Digital logic circuits

• Electronic control systems

• Timing and sequencing circuits

• Signal processing circuits

• Embedded electronics projects

• Educational and prototyping applications
