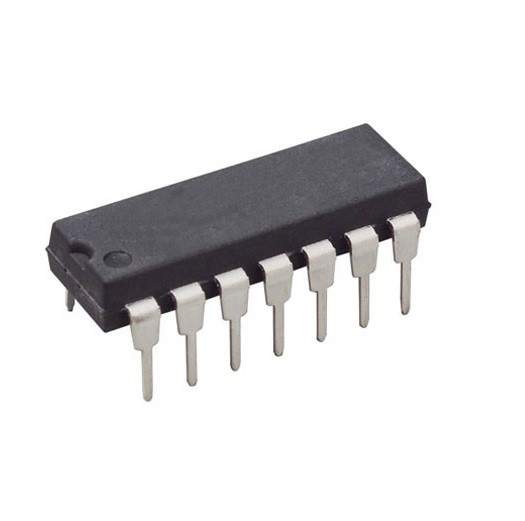

CD4001 Quad 2 Input NOR Gate IC (14 Pin DIP, CMOS Logic)

The CD4001 is a CMOS digital logic IC containing four independent 2 input NOR gates in a 14 pin DIP package. Each gate produces a HIGH output only when both inputs are LOW. With low power consumption and a wide operating supply range, this IC is suitable for digital logic circuits, control systems, and electronic prototyping.

Key Features -

• Four independent 2 input NOR gates

• CMOS digital logic technology

• Low power consumption

• High noise immunity

• Wide supply voltage range

• 14 pin DIP package for through hole mounting

Specifications -

• IC Type: Quad 2 Input NOR Gate

• Logic Family: CD4000 CMOS

• Number of Gates: 4

• Inputs per Gate: 2

• Supply Voltage: 3V to 15V, subject to the manufacturer's specifications

• Package Type: DIP

• Number of Pins: 14

• Mounting Type: Through Hole

• Operating Temperature: Negative 40 C to positive 85 C (verify the specific manufacturer's datasheet)

Applications -

• Digital logic circuits

• Logic control systems

• Signal inversion and combination circuits

• Oscillator and timing circuits

• Switching and sequencing circuits

• Electronic prototyping and educational projects
