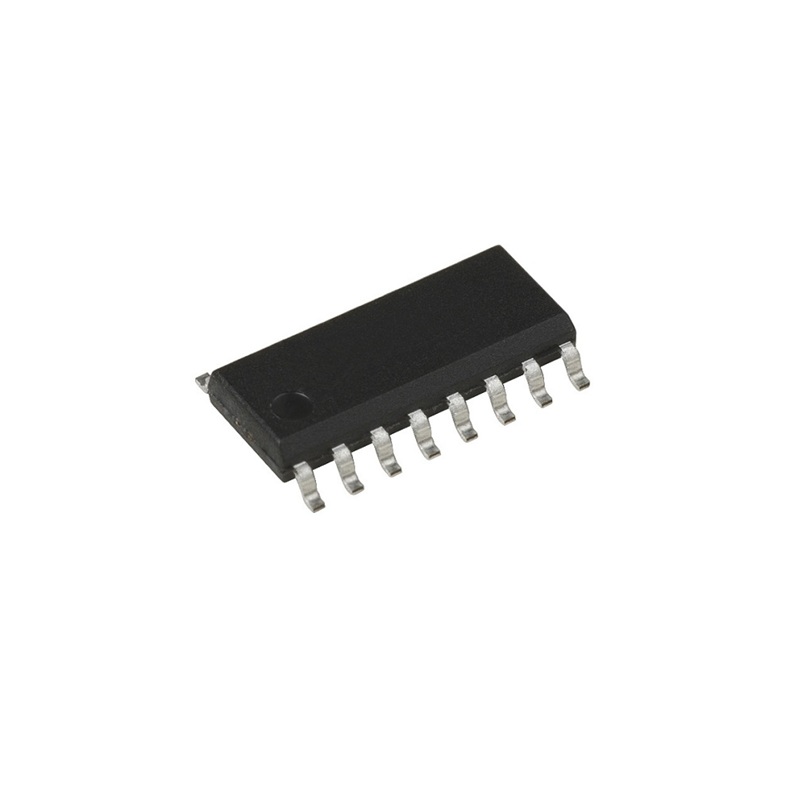

CD4020 SMD IC SOIC 16 14 Stage Binary Ripple Counter CMOS Logic IC (CD4020 IC)

The CD4020 is a CMOS 14 stage binary ripple counter IC designed for frequency division and counting applications. It provides multiple divided frequency outputs from a single clock input while maintaining low power consumption and high noise immunity.

Key Features -

• 14 stage binary ripple counter
• Multiple frequency divider outputs
• CMOS low power logic design
• Wide operating voltage range
• Asynchronous reset input
• High noise immunity
• SMD SOIC-16 package

Specifications -

• IC type - 14 stage binary ripple counter
• Logic family - CD4000 CMOS series
• Package type - SOIC-16 SMD
• Supply voltage - approx 3V to 18V
• Clock frequency - up to several MHz depending on supply voltage
• Input type - CMOS compatible
• Output type - binary divided outputs
• Propagation delay - approx 60ns to 200ns typical
• Operating temperature - approx -55 to 125°C

Applications -

• Frequency divider circuits
• Timing and delay circuits
• Event counting systems
• Oscillator circuits
• Digital clock systems
• Embedded electronics

Pinout Configuration -

• CLK - clock input
• RESET - asynchronous reset input
• Q1 to Q14 - divided binary outputs
• VDD - power supply
• VSS - ground
