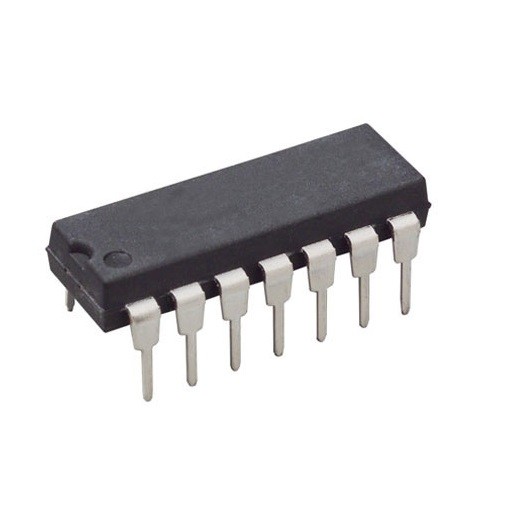

CD4025 Triple 3 Input NOR Gate IC (14 Pin DIP, CMOS Logic)

The CD4025 is a CMOS digital logic IC containing three independent 3 input NOR gates in a 14 pin DIP package. Each gate produces a HIGH output only when all three inputs are LOW. Its low power consumption and high noise immunity make it suitable for digital logic circuits, control systems, and applications requiring multi input logic operations.

Key Features -

• Three independent 3 input NOR gates

• CMOS digital logic technology

• Low power consumption

• High noise immunity

• Wide operating supply voltage range

• Suitable for multi input logic circuits

• 14 pin DIP package for through hole mounting

Specifications -

• IC Type: Triple 3 Input NOR Gate

• Logic Family: CD4000 CMOS

• Number of Gates: 3

• Inputs per Gate: 3

• Supply Voltage: 3V to 15V, subject to the manufacturer's specifications

• Package Type: DIP

• Number of Pins: 14

• Mounting Type: Through Hole

• Operating Temperature: Negative 40 C to positive 85 C (verify the specific manufacturer's datasheet)

Applications -

• Digital logic and control circuits

• Multi input signal processing

• Combinational logic circuits

• Switching and sequencing systems

• Digital control applications

• Electronic prototyping and educational projects
