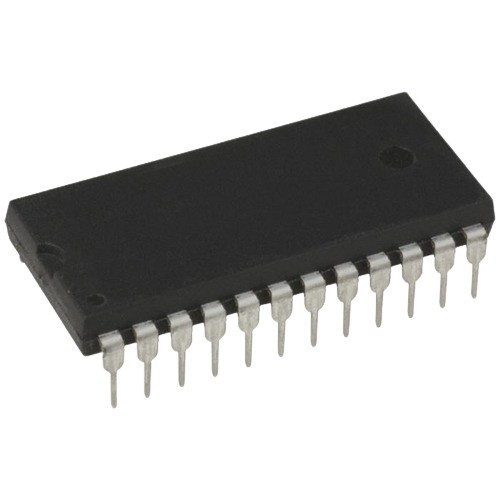

CD4034 8 Bit Bidirectional Shift Register IC (CD4034 IC)

The CD4034 is a CMOS 8 bit bidirectional shift register designed for parallel and serial data transfer. It supports both left and right shifting with parallel load capability.

This IC is used in data conversion, communication interfaces, and digital systems where flexible data shifting and storage are required. It operates over a wide supply voltage range with low power consumption.

Key Features

• 8 bit bidirectional shift register
• Left and right shift capability
• Parallel data load support
• Serial data input and output
• Wide supply voltage range
• Low power consumption

Specifications

• IC Type = 8 Bit Shift Register
• Logic Family = CD4000 CMOS
• Supply Voltage = 3V to 15V
• Package Type = DIP
• Number of Pins = 16
• Mounting Type = Through Hole
• Operating Temperature = -40C to +85C

Interfaces

• VDD = Power supply
• VSS = Ground
• D0 to D7 = Parallel data inputs
• CLK = Clock input
• SHIFT DIR = Shift direction control
• LOAD = Parallel load control
• DATA IN = Serial input
• Q = Serial output
