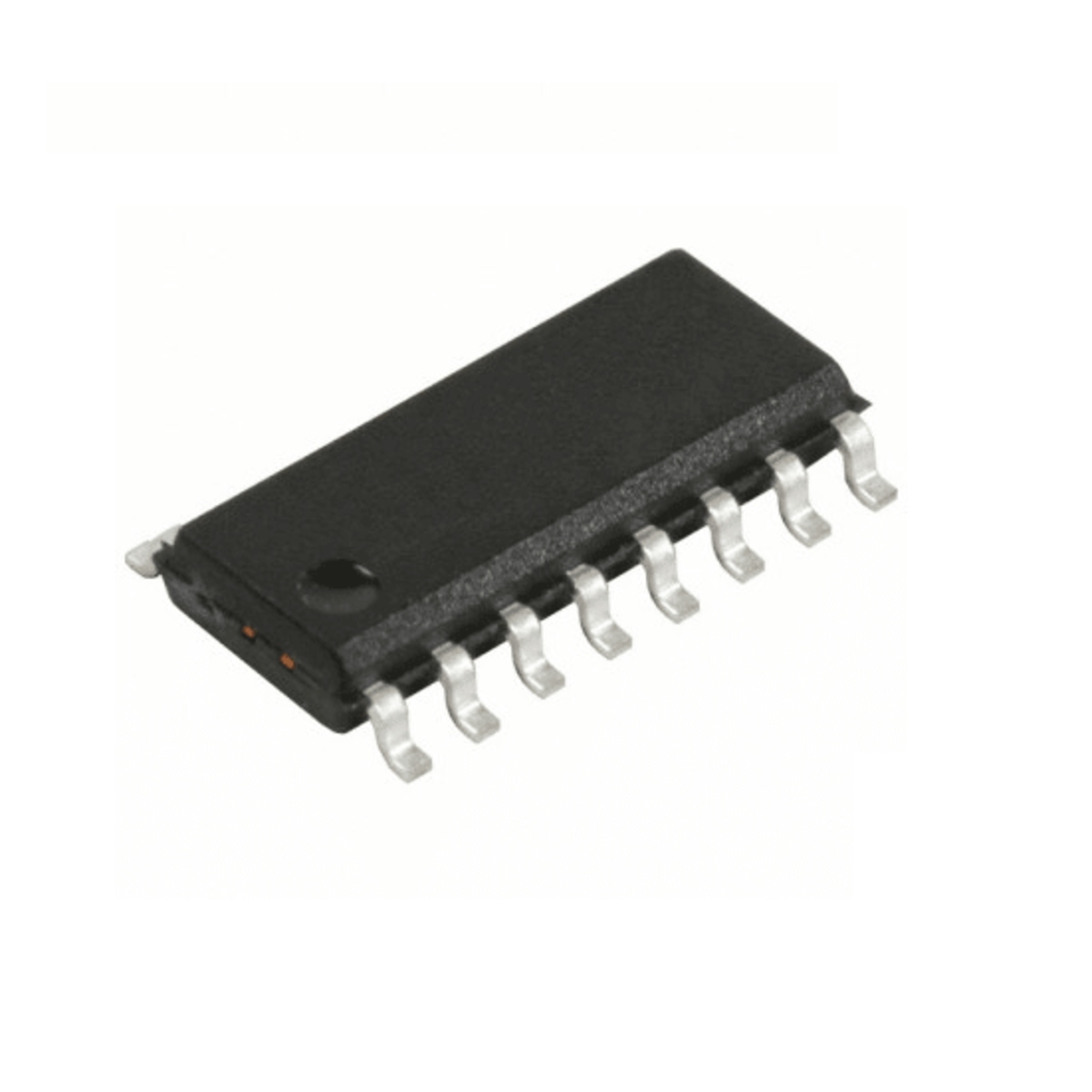

CD4050 SOIC-16 Hex Non-Inverting Buffer IC (CD4050)

The CD4050 is a CMOS Hex Non-Inverting Buffer IC designed for signal buffering, logic level conversion, and waveform conditioning applications. It contains six independent non-inverting buffer stages in a compact SOIC-16 surface mount package, making it suitable for digital electronics, embedded systems, and interfacing circuits.

Key Features -

• Hex non-inverting buffer IC
• Six independent buffer stages
• CMOS low power consumption design
• SOIC-16 surface mount package
• High noise immunity and stable operation

Specifications -

• IC type / Product type - Hex Non-Inverting Buffer IC
• Logic family / Component type - CMOS 4000 Series Logic IC
• Package type - SOIC-16 SMD IC
• Supply voltage - Approx 3V to 15V DC
• Input voltage - CMOS compatible logic input levels
• Output voltage - Buffered CMOS logic output levels
• Current rating - Low power CMOS operation
• Frequency / propagation delay - Approx 50ns to 200ns propagation delay depending on supply voltage
• Operating temperature - Approx -55°C to +125°C
• Additional important specifications - Six non-inverting buffers, high input impedance, logic level conversion capability, low static power dissipation

Applications -

• Digital signal buffering circuits
• Logic level shifting applications
• Signal conditioning systems
• Buffer and driver circuits
• Embedded electronics and automation projects

Pinout Configuration -

• Pin 1 - Buffer input
• Pin 2 - Buffer output
• Pin 3 - Buffer input
• Additional pins - Remaining buffer inputs and outputs, VDD supply pin, VSS ground pin
