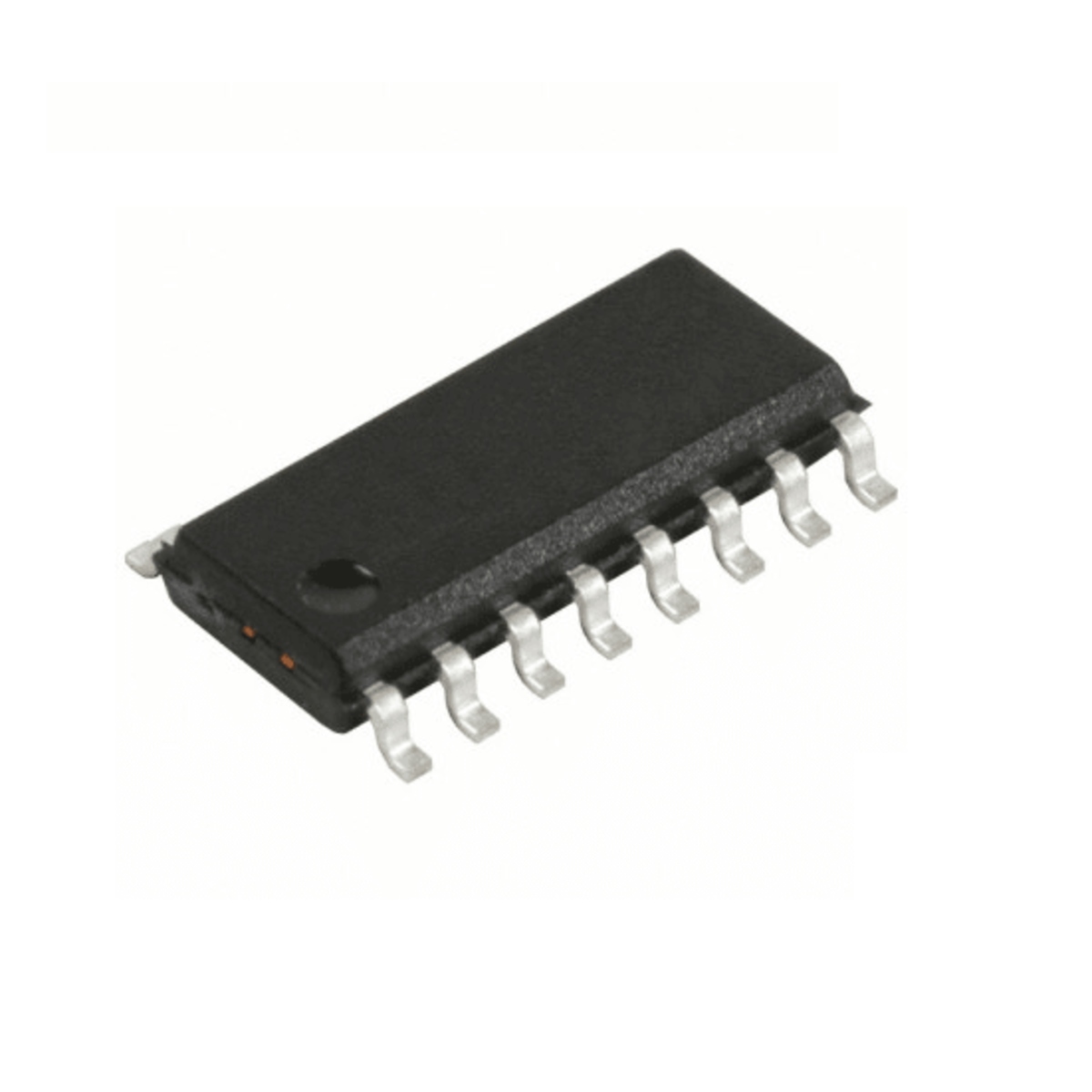

CD4052 SOIC-16 Dual 4-Channel Analog Multiplexer Demultiplexer IC (CD4052)
The CD4052 is a CMOS Dual 4-Channel Analog Multiplexer/Demultiplexer IC designed for analog and digital signal switching applications. It contains two independent 4-channel multiplexers controlled by common select lines, making it suitable for audio routing, sensor selection, data acquisition, and communication systems.
Key Features -
- Dual 4-channel analog multiplexer demultiplexer IC
- CMOS low power consumption design
- SOIC-16 surface mount package
- Bidirectional analog and digital signal switching
- High noise immunity and reliable switching operation
Specifications -
- IC type / Product type - Dual Analog Multiplexer Demultiplexer IC
- Logic family / Component type - CMOS 4000 Series Switching IC
- Package type - SOIC-16 SMD IC
- Supply voltage - Approx 3V to 18V DC
- Input voltage - CMOS compatible logic control levels
- Output voltage - Analog and digital signal compatible outputs
- Current rating - Low power CMOS operation
- Frequency / propagation delay - Fast switching response suitable for signal routing applications
- Operating temperature - Approx -55°C to +125°C
- Additional important specifications - Dual 4-channel configuration, low ON resistance, common address select inputs, bidirectional switching capability
Applications -
- Analog signal routing systems
- Audio switching circuits
- Sensor signal selection
- Data acquisition systems
- Embedded electronics and automation projects
Pinout Configuration -
- Pin 1 - Channel input/output
- Pin 2 - Channel input/output
- Pin 3 - Common input/output terminal
- Additional pins - Address select inputs, inhibit control pin, remaining channel pins, VDD supply pin, VSS ground pin
