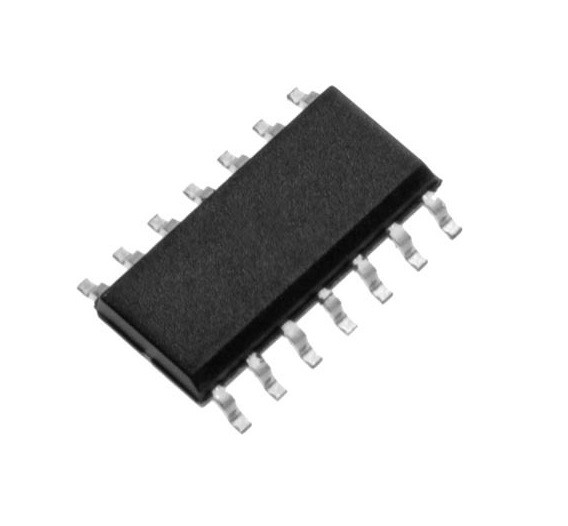

CD4072 SOIC-14 Dual 4-Input OR Gate IC (CD4072)
₹ 29.50 (Inclusive of 18.00% GST)
Base Price: ₹ 25.00 | GST (18.00%): ₹ 4.50
In Stock
Secure payments powered by Razorpay




Pune Store Pickup – Free
Order before 5 PM • Ready in approx. 2 hours
Collect upto 7:30 PM (Mon – Sat)
Collect upto 7:30 PM (Mon – Sat)
Dispatch from Pune
Orders before 3 PM: Same day dispatch
Orders after 3 PM: Next day dispatch
(No dispatch on Sunday)
Orders after 3 PM: Next day dispatch
(No dispatch on Sunday)
Buying in bulk?
Secure Payments100% safe and trusted
GST InvoiceWith every order
Wide Product RangeComponents, modules, tools and more
Product SupportQuick assistance via email
CD4072 SOIC-14 Dual 4-Input OR Gate IC (CD4072)
The CD4072 is a CMOS Dual 4-Input OR Gate IC designed for digital logic operations, signal combining, and control circuit applications. It contains two independent 4-input OR gates in a compact SOIC-14 surface mount package, making it suitable for digital electronics, embedded systems, and industrial automation circuits.
Key Features -
- Dual 4-input OR gate IC
- CMOS low power consumption design
- SOIC-14 surface mount package
- High noise immunity and stable logic performance
- Wide operating voltage range
Specifications -
- IC type / Product type - Dual 4-Input OR Gate IC
- Logic family / Component type - CMOS 4000 Series Logic IC
- Package type - SOIC-14 SMD IC
- Supply voltage - Approx 3V to 15V DC
- Input voltage - CMOS compatible logic input levels
- Output voltage - CMOS logic output levels
- Current rating - Low power CMOS operation
- Frequency / propagation delay - Approx 60ns to 200ns propagation delay depending on supply voltage
- Operating temperature - Approx -55°C to +125°C
- Additional important specifications - Two independent 4-input OR gates, high input impedance, low static power dissipation
Applications -
- Digital logic circuits
- Signal combining applications
- Logic control systems
- Embedded electronics projects
- Industrial automation circuits
Pinout Configuration -
- Pin 1 - OR gate input
- Pin 2 - OR gate input
- Pin 3 - OR gate input
- Additional pins - Remaining OR gate inputs, OR gate outputs, VDD supply pin, VSS ground pin
