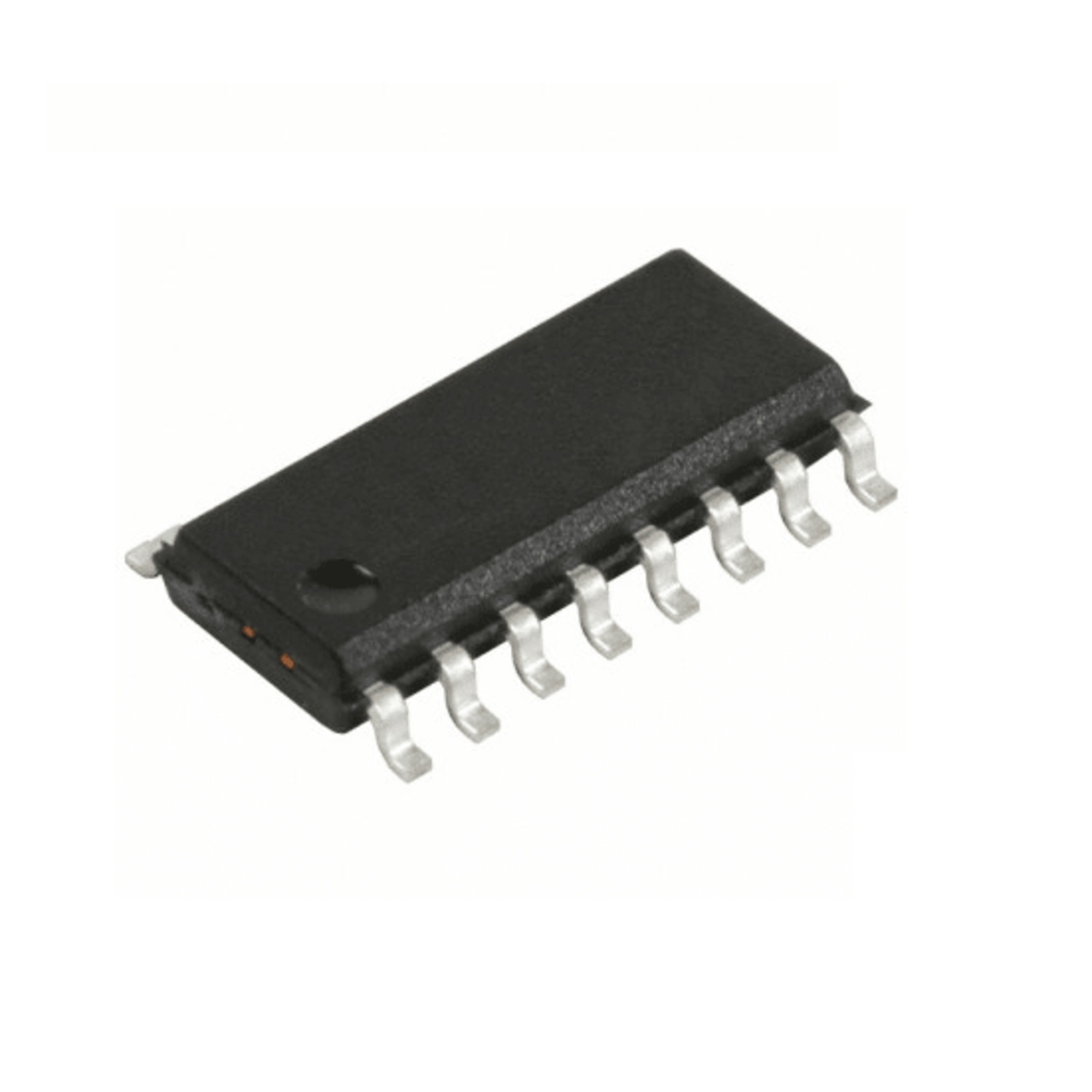

CD4504 SOIC-16 Hex Voltage Level Shifter IC (CD4504)

The CD4504 is a CMOS Hex Voltage Level Shifter IC designed for logic level conversion and signal interfacing applications. It contains six independent buffer circuits capable of translating logic signals between different voltage levels, making it suitable for microcontroller interfacing, digital communication systems, and embedded electronics projects.

Key Features -

• Hex voltage level shifter IC
• Six independent logic level converter channels
• CMOS low power consumption design
• SOIC-16 surface mount package
• Suitable for mixed voltage digital systems

Specifications -

• IC type / Product type - Hex Voltage Level Shifter IC
• Logic family / Component type - CMOS 4000 Series Logic IC
• Package type - SOIC-16 SMD IC
• Supply voltage - Approx 3V to 18V DC
• Input voltage - CMOS compatible logic input levels
• Output voltage - Logic level shifted CMOS outputs
• Current rating - Low power CMOS operation
• Frequency / propagation delay - Fast switching response suitable for digital interfacing applications
• Operating temperature - Approx -55 to +125 degree C
• Additional important specifications - Six independent level shifter channels, dual supply operation capability, high input impedance, low static power dissipation

Applications -

• Logic level conversion systems
• Microcontroller interfacing circuits
• Digital communication systems
• Embedded electronics projects
• Mixed voltage logic applications

Pinout Configuration -

• Pin 1 - Logic input pin
• Pin 2 - Logic output pin
• Pin 3 - Direction or control input
• Additional pins - Remaining logic input and output pins, VDD supply pin, VSS ground pin
