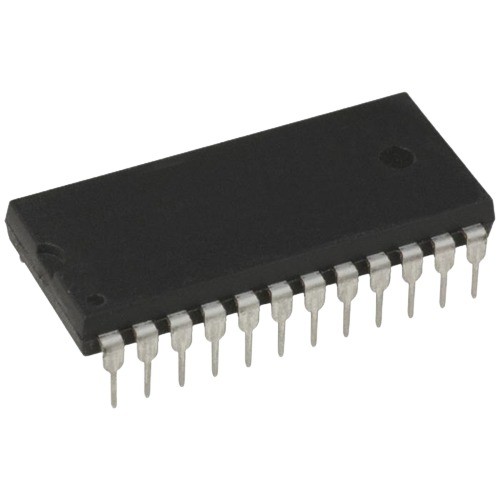

CD4515 4-to-16 Line Decoder with Latch DIP-24 (CD4515 DIP IC)
The CD4515 is a high-voltage CMOS integrated circuit that functions as a 4-to-16 line decoder with an internal 4-bit storage latch. It decodes a 4-bit binary input into one of sixteen mutually exclusive low-level (active-low) outputs, making it the inverting counterpart to the CD4514.
This IC is primarily used for memory address decoding, digital demultiplexing, and controlling large arrays of indicators where active-low logic is required. It is an essential component for Arduino electronics projects in India that need to expand a few microcontroller pins to manage sixteen independent output channels.
Key Features
- 4-line to 16-line decoding capability
- Internal 4-bit storage latch for input data
- Mutually exclusive active-low outputs
- Inhibit control for output blanking or expansion
- High-voltage CMOS technology for superior noise immunity
- Wide operating supply voltage range
- Low power consumption for battery-efficient designs
- Standardized symmetrical output characteristics
Specifications
- IC Type = 1-of-16 Decoder/Demultiplexer
- Logic Family = CD4000
- Supply Voltage = 3V to 18V
- Package Type = DIP
- Number of Pins = 24
- Mounting Type = Through-Hole
- Propagation Delay = 175ns at 5V
- Operating Temperature = -55 to 125 degrees Celsius
Interfaces
- A, B, C, D = 4-Bit Binary Address Inputs
- S0-S15 = 16 Decoded Active-Low Outputs
- EL = Latch Enable (Active High)
- INH = Inhibit Input (Active High)
- VSS = Ground (0V)
- VDD = Positive Supply Voltage
- NC = No Connection
- NC = No Connection
