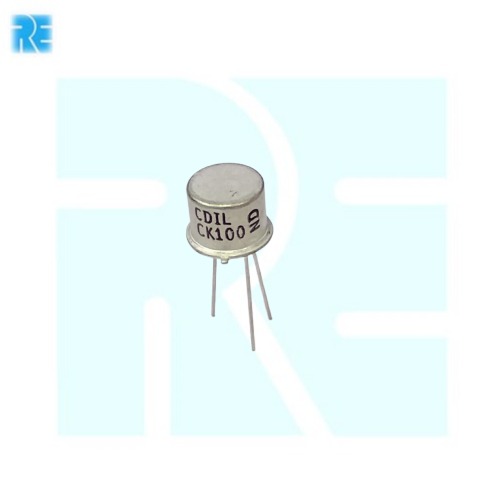

CK100 / SK100 PNP Silicon Planar Medium Power Transistor

The CK100 / SK100 is a general-purpose PNP silicon planar medium-power transistor designed for amplification, switching, driver stages, and power control applications. It is commonly used in complementary transistor circuits alongside the CL100S / SL100 NPN transistor, making it suitable for audio amplifiers, power supplies, relay drivers, and various electronic control systems.

Key Features -

• PNP silicon planar transistor design

• Suitable for switching and amplification applications

• Medium power handling capability

• Reliable electrical performance

• Low saturation characteristics

• Compatible with complementary NPN transistor stages

• Ideal for through-hole PCB mounting

Specifications -

• Product type - Bipolar Junction Transistor (BJT)

• Model - CK100 / SK100

• Transistor polarity - PNP

• Technology - Silicon Planar

• Package type - Through-Hole Power Transistor

• Mounting type - Through Hole

• Number of terminals - 3

• Function - Amplification and Switching

• Power category - Medium Power Transistor

• Construction - Silicon Semiconductor Device

Applications -

• Audio amplifier output stages

• Complementary push-pull amplifier circuits

• Relay and load driver circuits

• Power supply control systems

• Signal amplification applications

• Industrial electronic equipment

• Educational and DIY electronics projects
