CL100S / SL100 NPN Silicon Planar Medium Power Transistor

The CL100S / SL100 is a general-purpose NPN silicon planar medium-power transistor designed for switching, amplification, driver stages, and power control applications. It is widely used in audio amplifiers, relay drivers, power supplies, educational projects, and general electronic circuits requiring reliable medium-current handling capability.

Key Features -

• NPN silicon planar transistor design

• Suitable for switching and amplification applications

• Medium power handling capability

• Low saturation voltage for efficient operation

• Reliable and stable performance

• Suitable for audio, control, and power circuits

• Easy integration into through-hole PCB designs

Specifications -

• Product type - Bipolar Junction Transistor (BJT)

• Model - CL100S / SL100

• Transistor polarity - NPN

• Technology - Silicon Planar

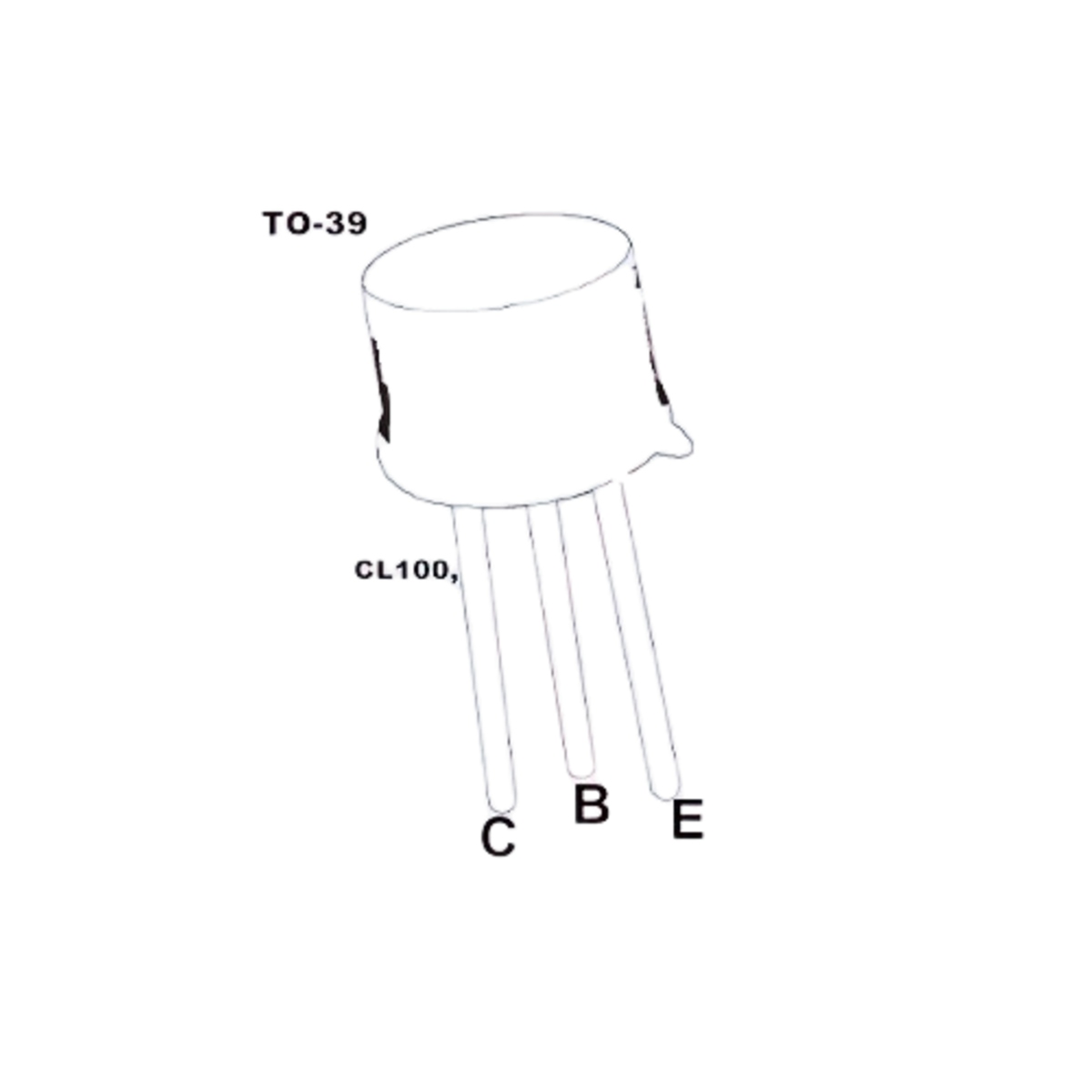

• Package type - Through-Hole Power Transistor

• Mounting type - Through Hole

• Number of terminals - 3

• Function - Amplification and Switching

• Power category - Medium Power Transistor

• Construction - Silicon Semiconductor Device

Applications -

• Audio amplifier circuits

• Relay and motor driver circuits

• Power supply control circuits

• Signal amplification stages

• Industrial electronic equipment

• Educational and training projects

• General-purpose switching applications
