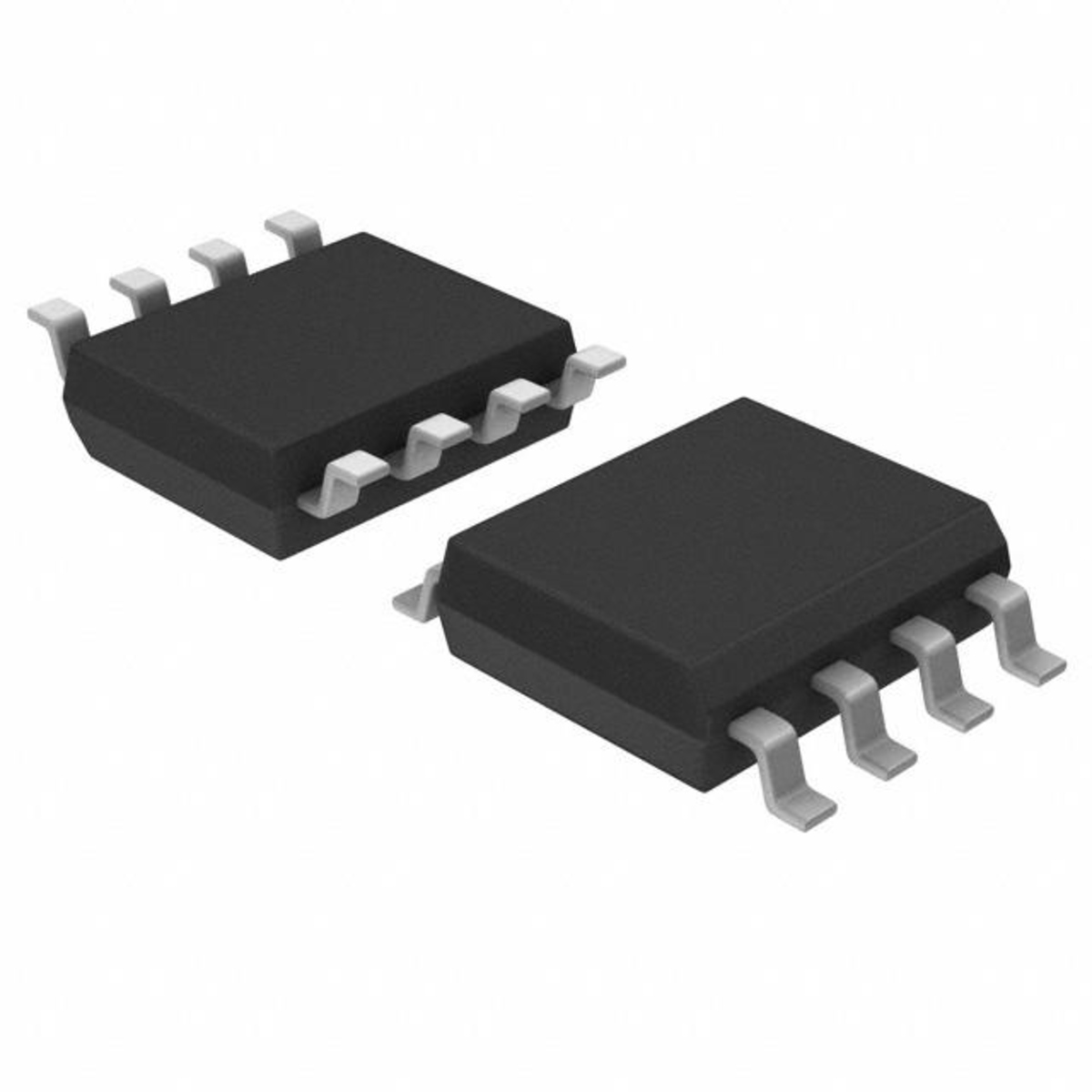

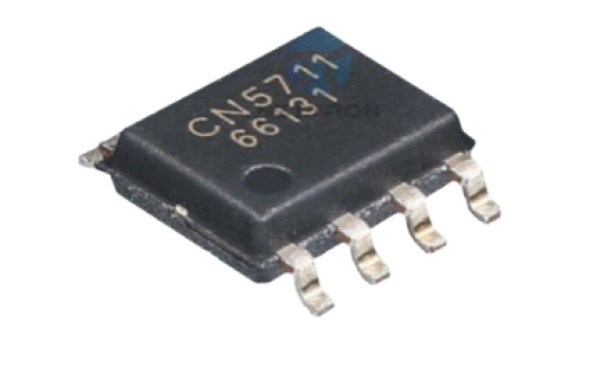

CN5711 1.5A 2.8V to 6V High Brightness LED Driver IC (SOIC-8 LED Driver)

The CN5711 1.5A High Brightness LED Driver IC is a compact and efficient LED driver designed to provide controlled current for high-brightness LED applications. It operates from 2.8V to 6V and integrates an on-chip power MOSFET, reducing the requirement for external switching components.

With LED output current up to 1.5A, low dropout voltage, accurate current regulation, and chip temperature regulation, the CN5711 provides reliable LED driving performance for portable lighting, embedded systems, and electronic products.

Key Features -

• LED current up to 1.5A

• Wide operating voltage range from 2.8V to 6V

• Integrated on-chip power MOSFET

• Low dropout voltage of 0.37V at 1.5A

• Output current accuracy of ±5%

• Chip temperature regulation

• Over LED current protection

• Compact SOIC-8 / eSOP8 package

• Pb-free and RoHS compliant

• Halogen free

Specifications -

• Product Type = High Brightness LED Driver IC

• Model = CN5711

• Operating Voltage = 2.8V to 6V

• Maximum LED Current = 1.5A

• Dropout Voltage = 0.37V at 1.5A

• Output Current Accuracy = ±5%

• Power Switching = On-Chip Power MOSFET

• Protection = Over LED Current Protection

• Temperature Control = Chip Temperature Regulation

• Operating Temperature = -40°C to +85°C

• Package Type = SOIC-8 / eSOP8

• Mounting Type = Surface Mount

• Compliance = Pb-Free, RoHS Compliant, Halogen Free

Applications -

• High-brightness LED lighting

• Portable LED lighting systems

• LED flashlights

• Battery-powered lighting

• Embedded LED systems

• Industrial lighting electronics

• Automotive and electronic lighting applications

• Portable electronic devices

• LED driver modules

• DIY electronics projects
