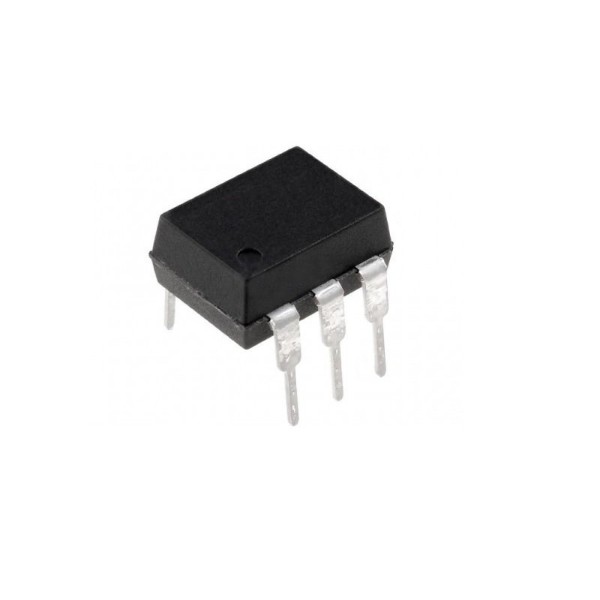

CNY17-3 Phototransistor Output Optocoupler DIP-6 (CNY17-3 DIP IC)

The CNY17-3 is an optically coupled pair consisting of a Gallium Arsenide (GaAs) infrared-emitting diode and a silicon NPN phototransistor in a 6-pin dual-in-line package. This IC provides electrical isolation between an input control circuit and an output load. It features a high Current Transfer Ratio (CTR) ranging from 100 percent to 200 percent at a 10mA forward current. It is specifically designed to transfer digital or analog signals while protecting sensitive components from high-voltage transients and eliminating ground loops in complex electronic systems.

This IC is primarily used in feedback loops for switch-mode power supplies, microprocessor system interfaces, and industrial automation controllers. It is a fundamental component for Arduino electronics projects in India for high-reliability signal isolation, building isolated logic gates, and safe interfacing with 24V industrial sensors or PLC inputs.

Key Features

  • High isolation test voltage (5300 Vrms)
  • Current Transfer Ratio (CTR) of 100 percent to 200 percent
  • High reliability and long-term stability
  • Low coupling capacitance (typically 0.6pF)
  • Standard 6-pin DIP package for easy through-hole mounting
  • Fast switching time (typically 3 microseconds)
  • Access to phototransistor base for custom biasing
  • High collector-emitter voltage (70V minimum)
