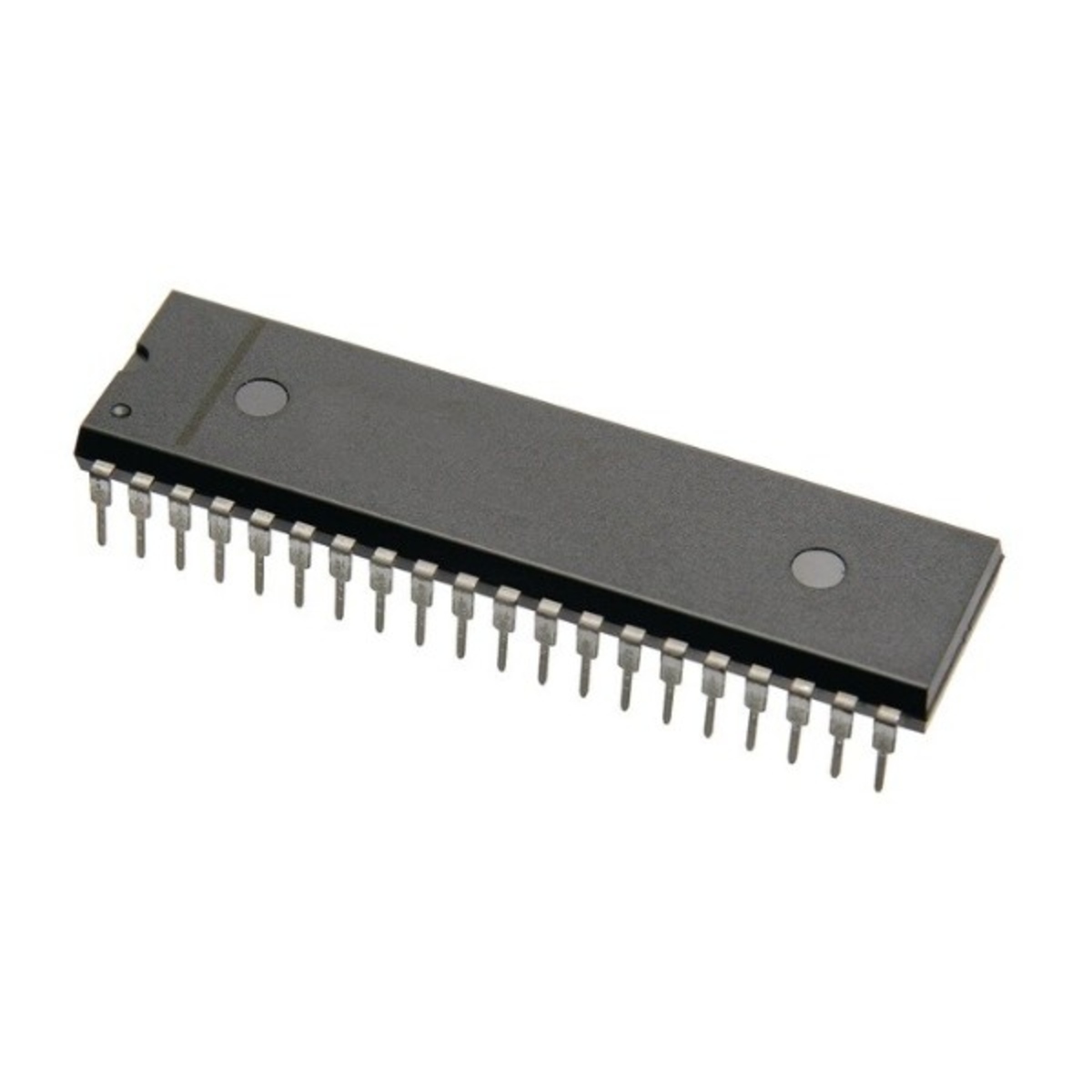

CPD6402CE Universal Asynchronous Receiver Transmitter IC DIP-40 (CPD6402CE UART IC)

The CPD6402CE is a Universal Asynchronous Receiver Transmitter (UART) IC designed for serial data communication in microprocessor, computer, industrial control, and embedded system applications. This device converts parallel data into serial format for transmission and serial data into parallel format for reception, providing reliable asynchronous communication between digital systems.

Key Features -

• Universal Asynchronous Receiver Transmitter (UART)

• Full duplex serial communication

• Parallel-to-serial data conversion

• Serial-to-parallel data conversion

• Asynchronous data transmission and reception

• TTL compatible operation

• DIP-40 through hole package

Specifications -

• Product type - UART communication IC

• Model - CPD6402CE

• Function - Universal Asynchronous Receiver Transmitter

• Package type - DIP-40

• Mounting type - Through Hole Mount

• Communication type - Asynchronous serial communication

• Data format - Programmable character length and control

• Interface type - Parallel and serial data interface

• Logic compatibility - TTL compatible

• Additional features - Full duplex operation and reliable data transfer

Applications -

• Serial communication systems

• Microprocessor-based equipment

• Industrial control systems

• Data terminals

• Embedded electronic systems

• Computer peripheral interfaces

• Educational and development projects
