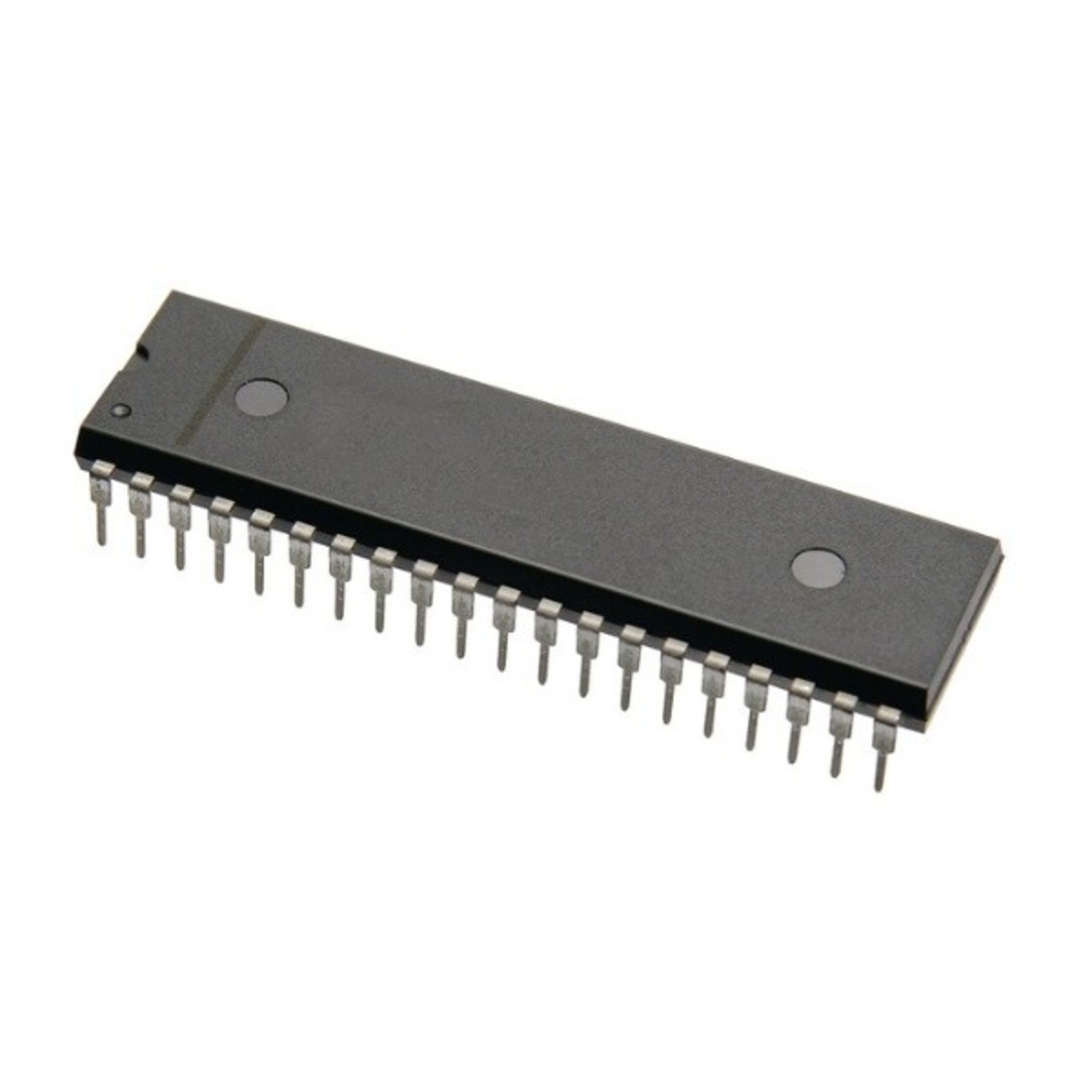

CS7107GP 3-1/2 Digit A/D Converter IC DIP-40 (CS7107GP Digital Panel Meter IC)

The CS7107GP is a high-accuracy 3-1/2 digit Analog-to-Digital Converter (ADC) IC with integrated LED display drivers, designed for digital panel meters, voltmeters, measurement instruments, and monitoring equipment. Compatible with ICL7107 functionality, this IC directly drives common anode LED displays and provides precise analog-to-digital conversion with minimal external components.

Key Features -

• 3-1/2 digit A/D converter IC

• Integrated LED display drivers

• Direct interface to common anode LED displays

• High measurement accuracy

• Low power consumption

• Minimal external component requirement

• DIP-40 through hole package

Specifications -

• Product type - Analog-to-Digital Converter IC

• Model - CS7107GP

• Converter type - 3-1/2 Digit ADC

• Display interface - Integrated LED display driver

• Package type - DIP-40

• Mounting type - Through Hole Mount

• Display compatibility - Common Anode 7-Segment LED Displays

• Resolution - 2000 counts

• Input type - Differential analog input

• Additional features - Auto polarity indication, zero adjustment, and high noise rejection

Applications -

• Digital voltmeters

• Panel meter designs

• Measurement instruments

• Power supply monitoring

• Industrial control equipment

• Test and measurement systems

• Educational electronics projects
