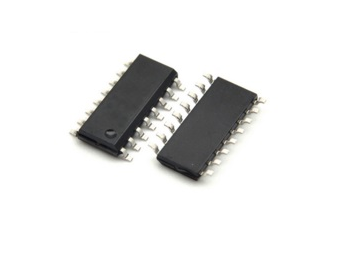

CY801 RF Receiver IC (SOIC 16, 300 MHz to 450 MHz)

The CY801 is identified as an RF receiver IC intended for operation in the 300 MHz to 450 MHz frequency range. It is intended for wireless signal reception in compatible RF communication and remote control circuits. The SOIC 16 package supports surface mount PCB designs. Confirm the manufacturer's datasheet for the exact receiver architecture, modulation compatibility, electrical ratings, and pin configuration before selecting the device for a design.

Key Features -

• RF receiver specified for the 300 MHz to 450 MHz frequency range

• 16 pin surface mount package, as specified

• Intended for compatible wireless signal reception

• Suitable for compact RF circuit designs

• Potential use in remote control and wireless communication equipment

• Electrical characteristics depend on the exact manufacturer variant

Specifications -

• Part Number: CY801

• IC Type: RF Receiver

• Frequency Range: 300 MHz to 450 MHz, as specified

• Package: SOIC 16, verify the exact package designation

• Mounting Type: Surface mount

• Modulation Type: Verify the manufacturer's datasheet

• Receiver Sensitivity: Verify the manufacturer's datasheet

• Supply Voltage: Verify the manufacturer's datasheet

• Data Output Configuration: Verify the manufacturer's datasheet

• Pin Configuration: Refer to the exact manufacturer datasheet

Applications -

• Wireless remote control systems

• RF communication circuits

• Wireless switching equipment

• Remote monitoring systems

• Electronic access control systems

• Embedded wireless control designs
