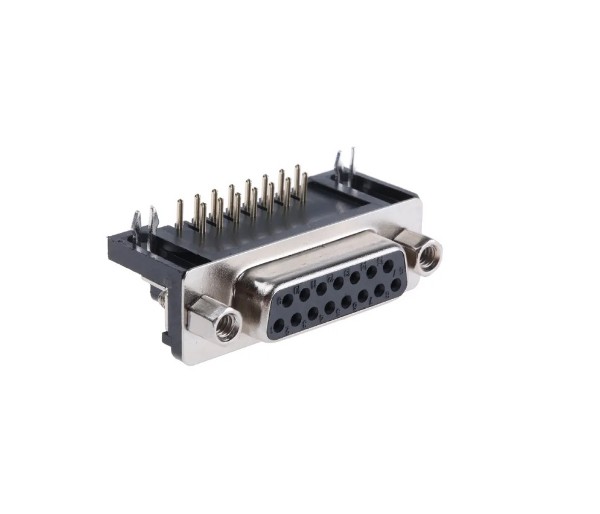

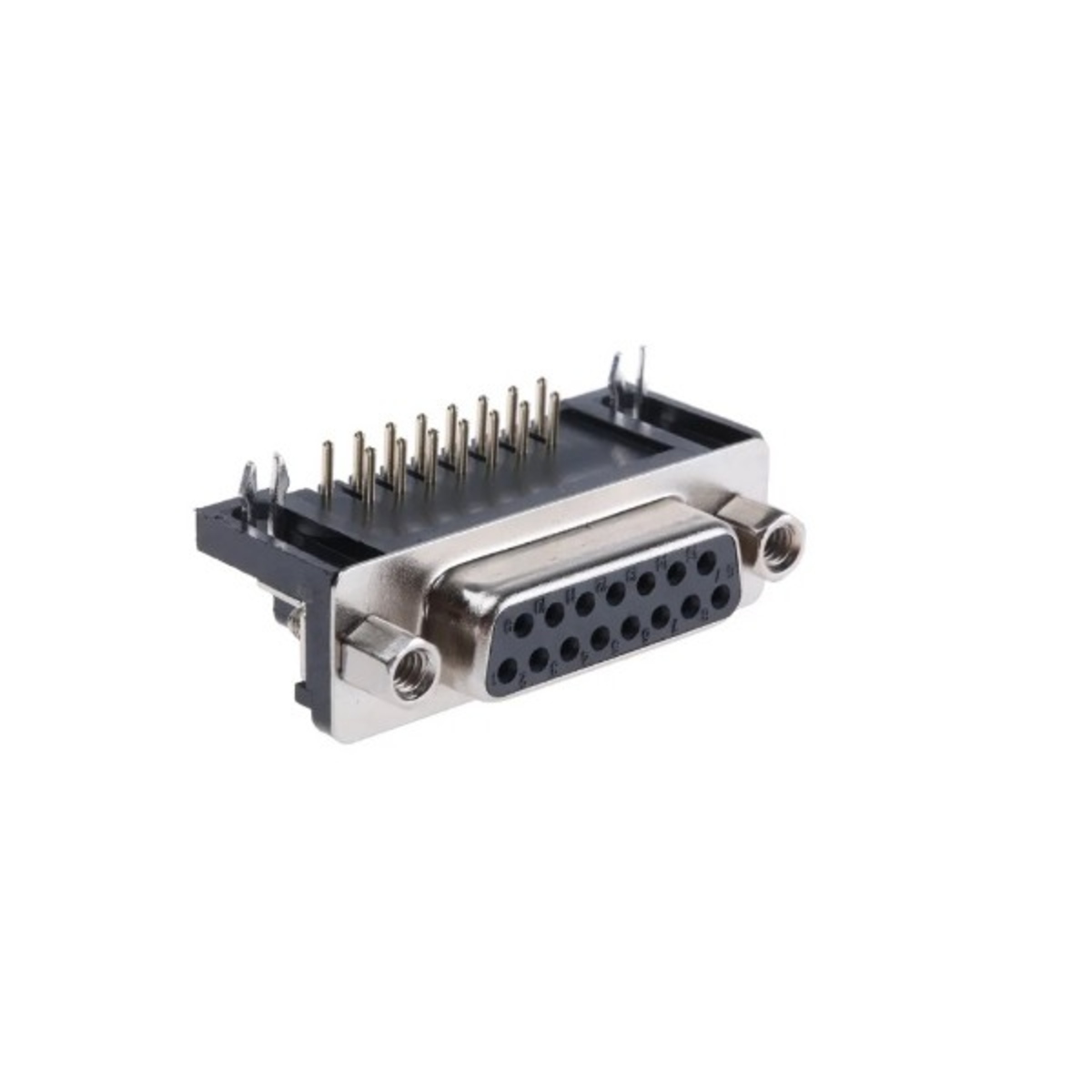

DB15 Pin 2 Row D-Sub Right Angle Female Connector for PCB Mount Applications (DB15 Right Angle Female Connector)

The DB15 Pin 2 Row D-Sub Right Angle Female Connector is a through hole PCB mount connector designed for reliable signal and data connections in industrial electronics, communication systems, embedded devices, instrumentation, and computer interface applications. It features a 15 pin, 2 row D-Sub female interface with a right angle PCB mounting design, enabling space-efficient board layouts while providing secure mechanical support and stable electrical connectivity.

The durable metal shield provides excellent mechanical protection and EMI shielding, making the connector ideal for serial communication, industrial automation, and custom PCB designs.

Key Features -

• DB15 female D-Sub connector

• 2 row 15 pin configuration

• Right angle PCB through hole mounting

• Durable metal shield construction

• Reliable signal transmission performance

• Space-saving PCB design

• Corrosion resistant contacts

• Secure PCB solder mounting

Specifications -

• Product Type: D-Sub Female Connector

• Connector Type: DB15 Female

• Number of Pins: 15 Pins

• Pin Arrangement: 2 Row Configuration

• Mounting Type: Right Angle PCB Through Hole Mount

• Termination Type: Through Hole Solder Pins

• Contact Material: Metal Alloy

• Housing Material: Metal Shield Shell with Insulated Body

• Additional Features: Compact right angle structure, secure PCB connection, corrosion resistant contacts, stable signal transmission, EMI shielding

Applications -

• Industrial control electronics

• Communication systems

• Embedded electronic devices

• PCB interface applications

• Data and signal transmission equipment

• Computer peripherals

• Test and measurement instruments

• Industrial automation systems
