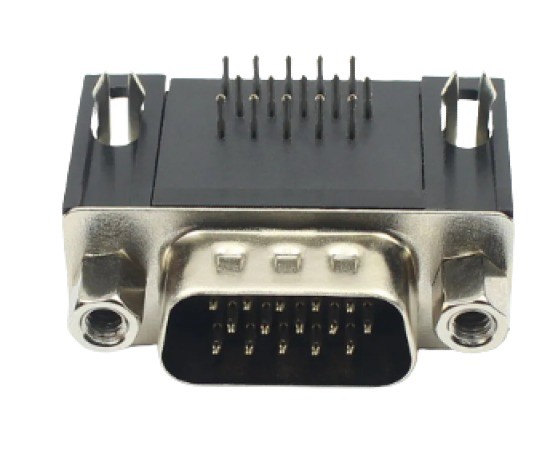

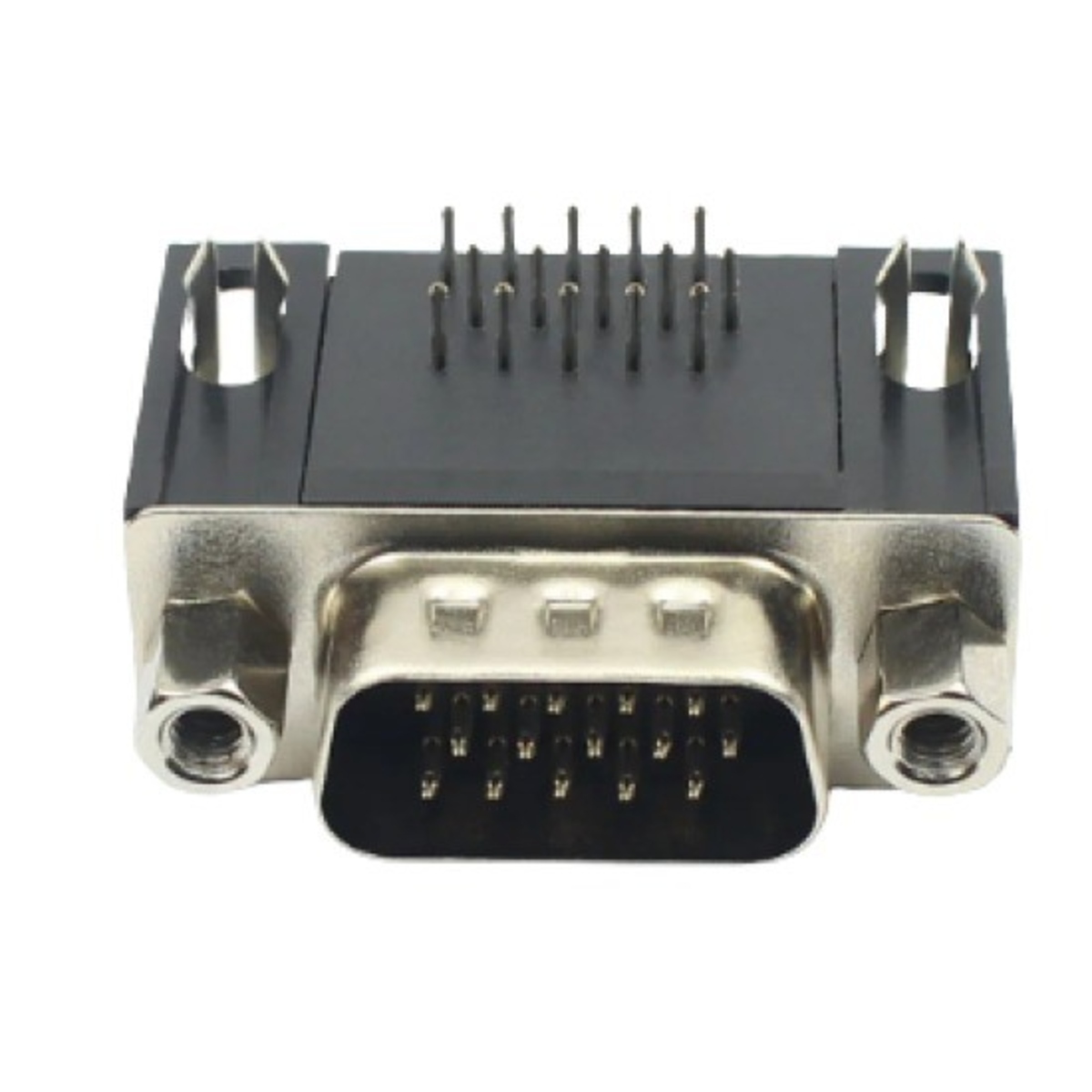

DB15 Pin VGA 3 Row D-Sub Right Angle Male Connector (HD15 VGA Right Angle PCB Connector)

The DB15 Pin VGA 3 Row D-Sub Right Angle Male Connector is a through hole PCB connector designed for reliable analog video and signal transmission in VGA display systems, computer interfaces, industrial electronics, communication equipment, and embedded display applications. It features a 15 pin, 3 row High Density D-Sub (HD15) male interface with a right angle PCB mounting design, allowing compact board layouts while providing secure mechanical support and dependable electrical connectivity.

The durable metal shield offers mechanical protection and EMI shielding, making the connector ideal for VGA display interfaces, industrial equipment, embedded devices, and custom PCB designs where horizontal cable routing is required.

Key Features -

• HD15 VGA male connector

• 3 row 15 pin high density configuration

• Right angle PCB through hole mounting

• Reliable analog video signal transmission

• Durable metal shield construction

• Space-saving PCB design

• Corrosion resistant contacts

• Secure PCB solder mounting

Specifications -

• Product Type: VGA D-Sub Male Connector

• Connector Type: HD15 VGA Male

• Number of Pins: 15 Pins

• Pin Arrangement: 3 Row High Density VGA Configuration

• Mounting Type: Right Angle PCB Through Hole Mount

• Termination Type: Through Hole Solder Pins

• Contact Material: Metal Alloy

• Housing Material: Metal Shield Shell with Insulated Body

• Signal Type: VGA Video and Signal Connection

• Additional Features: Secure PCB installation, corrosion resistant contacts, stable signal connectivity, compact right angle structure, EMI shielding

Applications -

• VGA display interfaces

• Computer and monitor connections

• Industrial display systems

• Embedded electronic projects

• Video communication equipment

• Projector interface circuits

• Test and measurement equipment

• Custom PCB designs
