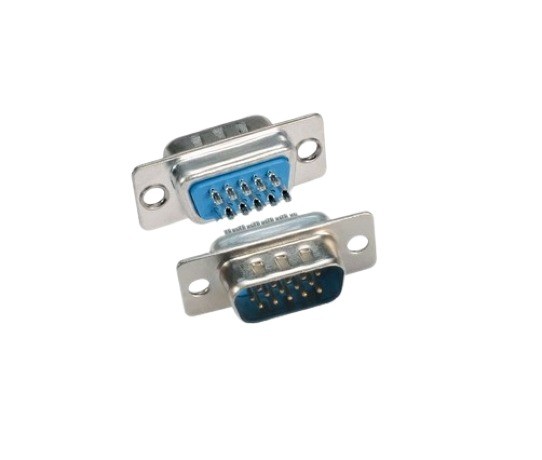

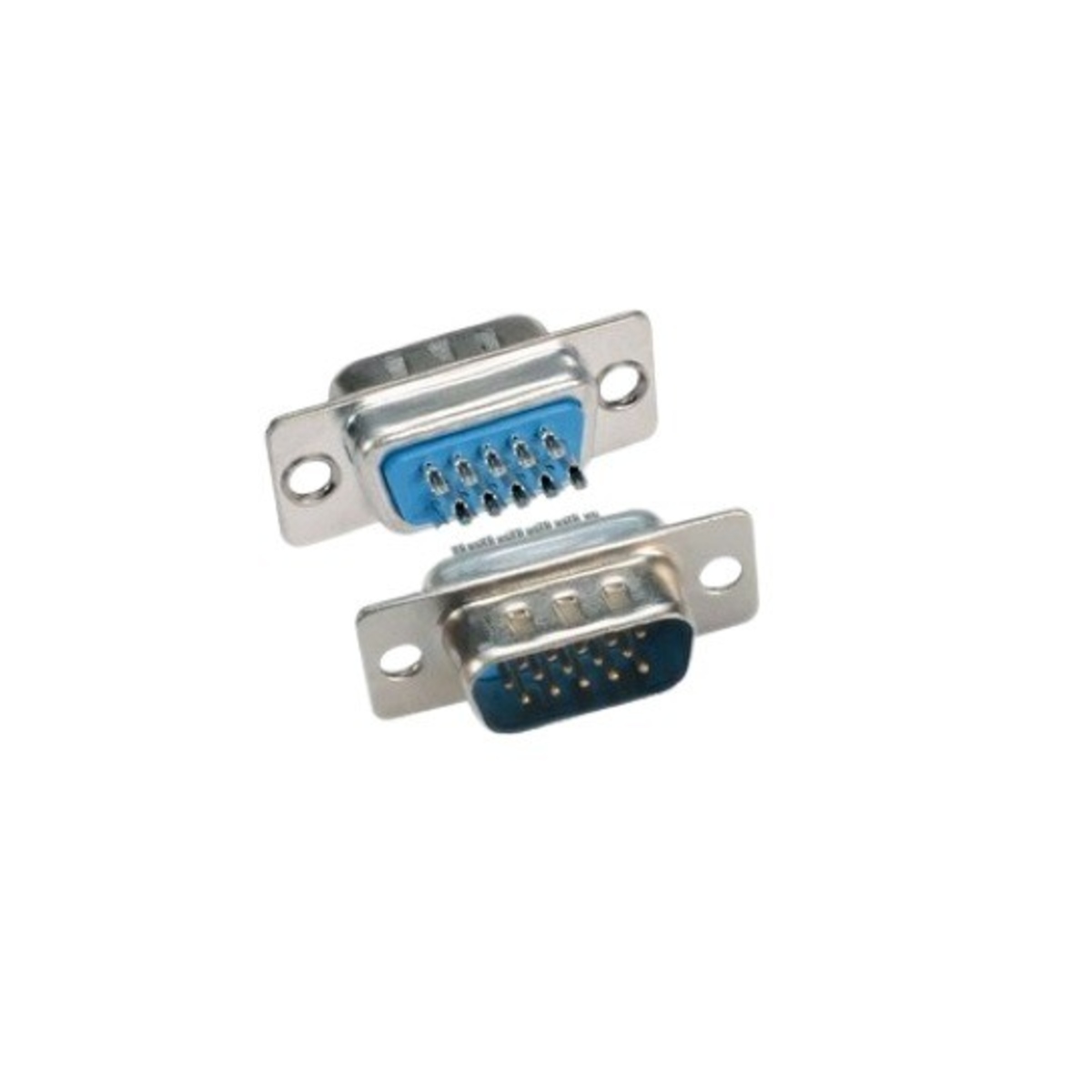

DB15 Pin VGA 3 Row D-Sub Solder Type Male Connector VGA Interface Connector (HD15 VGA Male Connector)

The DB15 Pin VGA 3 Row D-Sub Solder Type Male Connector is a cable mount VGA connector designed for reliable analog video and signal connections in VGA display systems, computer monitors, industrial electronics, communication equipment, and embedded applications. It features a 15 pin, 3 row High Density D-Sub (HD15) male interface with solder cup terminals, allowing secure cable termination and dependable video signal transmission.

The connector is housed in a durable metal shell that provides mechanical strength and EMI shielding, making it suitable for custom VGA cable assemblies, display equipment, and industrial video applications.

Key Features -

• HD15 VGA male D-Sub connector

• 3 row 15 pin high density configuration

• Solder cup termination design

• Reliable analog video signal transmission

• Durable metal shell construction

• Secure cable connectivity

• Corrosion resistant contacts

• Easy cable assembly

Specifications -

• Product Type: VGA D-Sub Connector

• Connector Type: HD15 VGA Male

• Number of Pins: 15 Pins

• Pin Configuration: 3 Row High Density Arrangement

• Mounting Type: Cable Mount

• Termination Type: Solder Cup

• Contact Material: Metal Alloy

• Housing Material: Metal Shield Shell

• Signal Type: VGA Video and Signal Connection

• Additional Features: Stable connectivity, durable construction, reliable signal transfer, EMI shielding

Applications -

• VGA display systems

• Computer monitor connections

• Projector interface cables

• Industrial communication systems

• Embedded electronic equipment

• Video signal applications

• Test and measurement equipment

• Custom VGA cable assemblies
