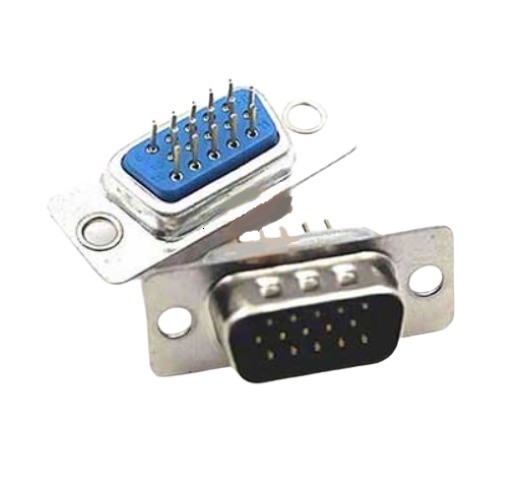

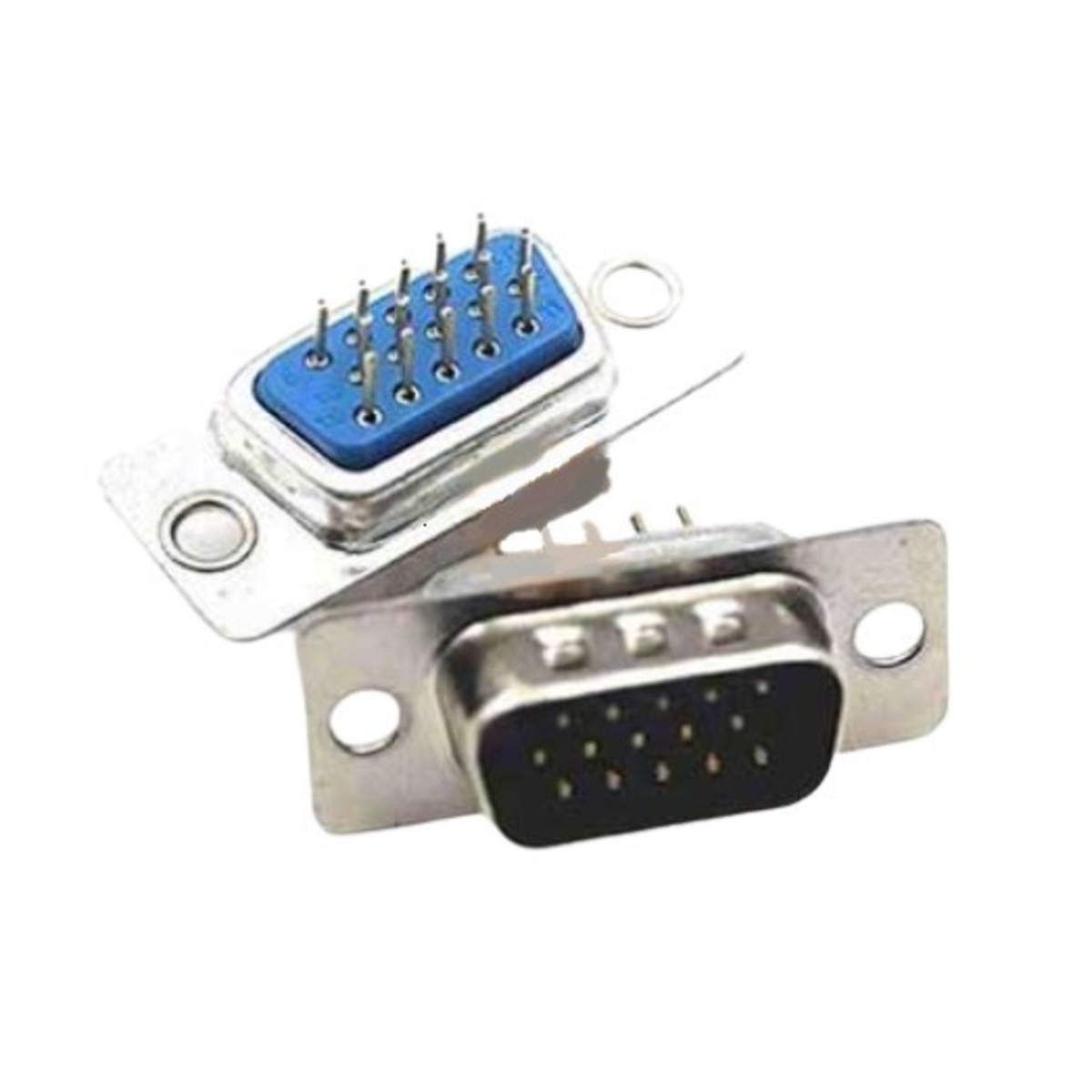

DB15 Pin VGA 3 Row PCB Mount Straight Male Connector (HD15 VGA Through Hole PCB Connector)

The DB15 Pin VGA 3 Row PCB Mount Straight Male Connector is a through hole PCB connector designed for reliable analog video and signal connections in VGA display systems, communication equipment, industrial electronics, embedded devices, and computer interface applications. It features a 15 pin, 3 row High Density D-Sub (HD15) male interface with a straight PCB mounting design, providing secure mechanical support and stable electrical connectivity for printed circuit board assemblies.

The durable metal shield offers mechanical protection and EMI shielding, making the connector ideal for VGA display interfaces, industrial equipment, test instruments, and custom PCB designs.

Key Features -

• HD15 VGA male connector

• 3 row 15 pin high density configuration

• Straight PCB through hole mounting

• Durable metal shield construction

• Reliable analog video signal transmission

• Secure PCB solder mounting

• Corrosion resistant contacts

• Standard VGA interface compatibility

Specifications -

• Product Type: VGA D-Sub Male Connector

• Connector Type: HD15 VGA Male

• Number of Pins: 15 Pins

• Pin Arrangement: 3 Row High Density Configuration

• Mounting Type: Straight PCB Through Hole Mount

• Termination Type: Through Hole Solder Pins

• Contact Material: Metal Alloy

• Housing Material: Metal Shield Shell with Insulated Body

• Signal Type: VGA Video and Signal Connection

• Additional Features: Secure PCB connection, corrosion resistant contacts, reliable signal transmission, durable construction, EMI shielding

Applications -

• VGA display systems

• Computer monitor interfaces

• Projector interface circuits

• Industrial control electronics

• Communication equipment

• PCB interface applications

• Video signal transmission systems

• Embedded electronic devices
