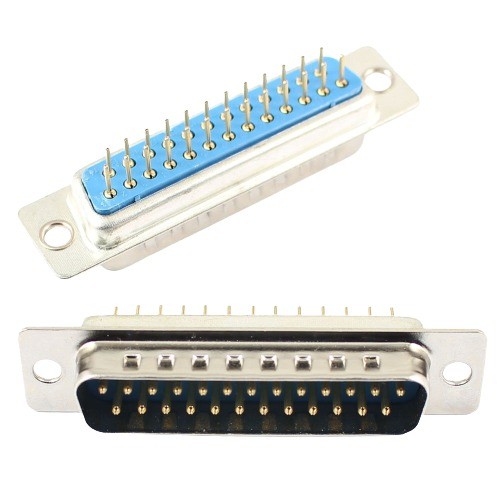

DB25 Pin D-Sub PCB Mount Straight Male Connector for Data and Signal Applications (DB25 Through Hole PCB Male Connector)

The DB25 Pin D-Sub PCB Mount Straight Male Connector is a through hole PCB connector designed for reliable signal and data connections in communication systems, industrial electronics, embedded systems, instrumentation, and computer interface applications. It features a 25 pin D-Sub male interface with a straight PCB mounting design, providing secure mechanical support and stable electrical connectivity for printed circuit board assemblies.

The durable metal shield offers mechanical protection and EMI shielding, making the connector suitable for industrial control equipment, computer interfaces, parallel communication ports, and custom PCB designs.

Key Features -

• DB25 male D-Sub connector

• Straight PCB through hole mounting

• 25 pin connector configuration

• Durable metal shield construction

• Reliable signal transmission

• Secure PCB connectivity

• Corrosion resistant contacts

• Standard D-Sub interface compatibility

Specifications -

• Product Type: D-Sub Male Connector

• Connector Type: DB25 Male

• Number of Pins: 25 Pins

• Mounting Type: PCB Through Hole Mount

• Connector Orientation: Straight

• Termination Type: Through Hole Solder Pins

• Contact Material: Metal Alloy

• Housing Material: Metal Shield Shell with Insulated Body

• Pin Configuration: Standard 25 Pin D-Sub

• Additional Features: Corrosion resistant contacts, stable signal transmission, durable connector structure, EMI shielding

Applications -

• Data communication systems

• Industrial control electronics

• Computer and parallel interfaces

• Embedded electronic projects

• PCB based electronic assemblies

• Instrumentation systems

• Test and measurement equipment

• Industrial automation systems
