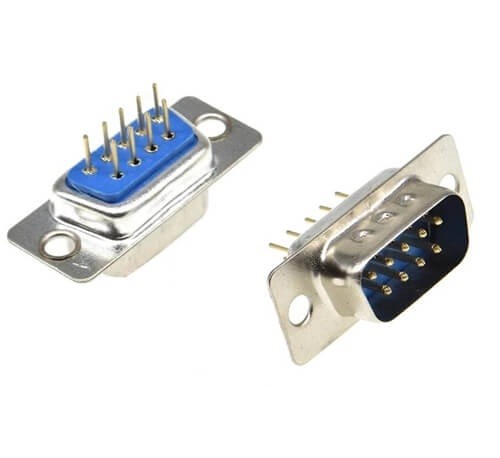

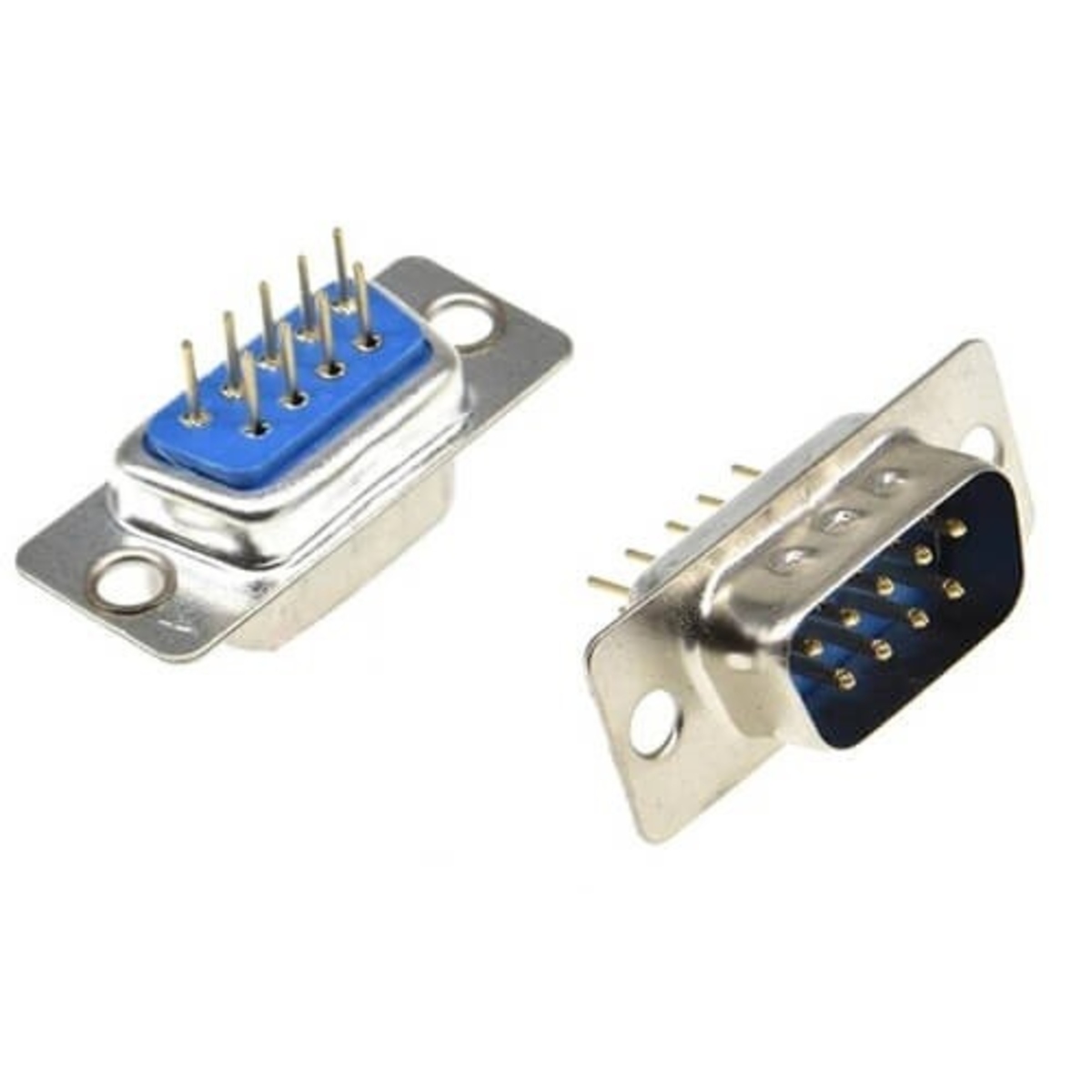

DB9 Pin D-Sub PCB Mount Straight Male Connector (9 Pin D-Sub Through Hole Connector)

The DB9 Pin D-Sub PCB Mount Straight Male Connector is a through hole PCB connector designed for reliable serial communication, data transmission, and signal interfacing in industrial electronics, embedded systems, communication equipment, and computer peripherals. It features a 9 pin D-Sub male interface with a straight PCB mounting design, providing secure mechanical support and stable electrical connectivity for printed circuit board applications.

The durable metal shell offers mechanical protection and EMI shielding, making the connector suitable for RS232 communication, industrial control systems, instrumentation, and custom PCB designs.

Key Features -

• DB9 male connector configuration

• Straight PCB through hole mounting

• Reliable signal transmission performance

• Durable metal shell construction

• Standard D-Sub interface compatibility

• Secure PCB solder mounting

• Corrosion resistant contacts

• Stable mechanical and electrical connection

Specifications -

• Product Type: D-Sub Male Connector

• Model: DB9 PCB Mount Straight Male Connector

• Connector Type: DB9 Male (DE-9)

• Number of Pins: 9 Pins

• Mounting Type: PCB Through Hole Mount

• Orientation: Straight

• Contact Material: Metal Alloy

• Housing Material: Metal Shield Shell with Insulated Plastic Body

• Termination Type: Through Hole Solder Pins

• Additional Features: EMI shielding, secure PCB mounting, reliable signal transmission

Applications -

• RS232 serial communication systems

• Industrial control equipment

• Computer and peripheral interfaces

• PLC communication circuits

• Data transmission equipment

• Embedded electronic systems

• Test and measurement instruments

• Custom PCB designs
