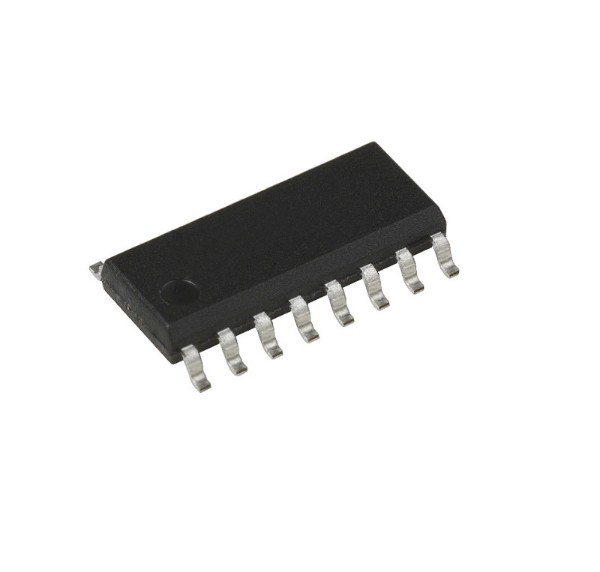

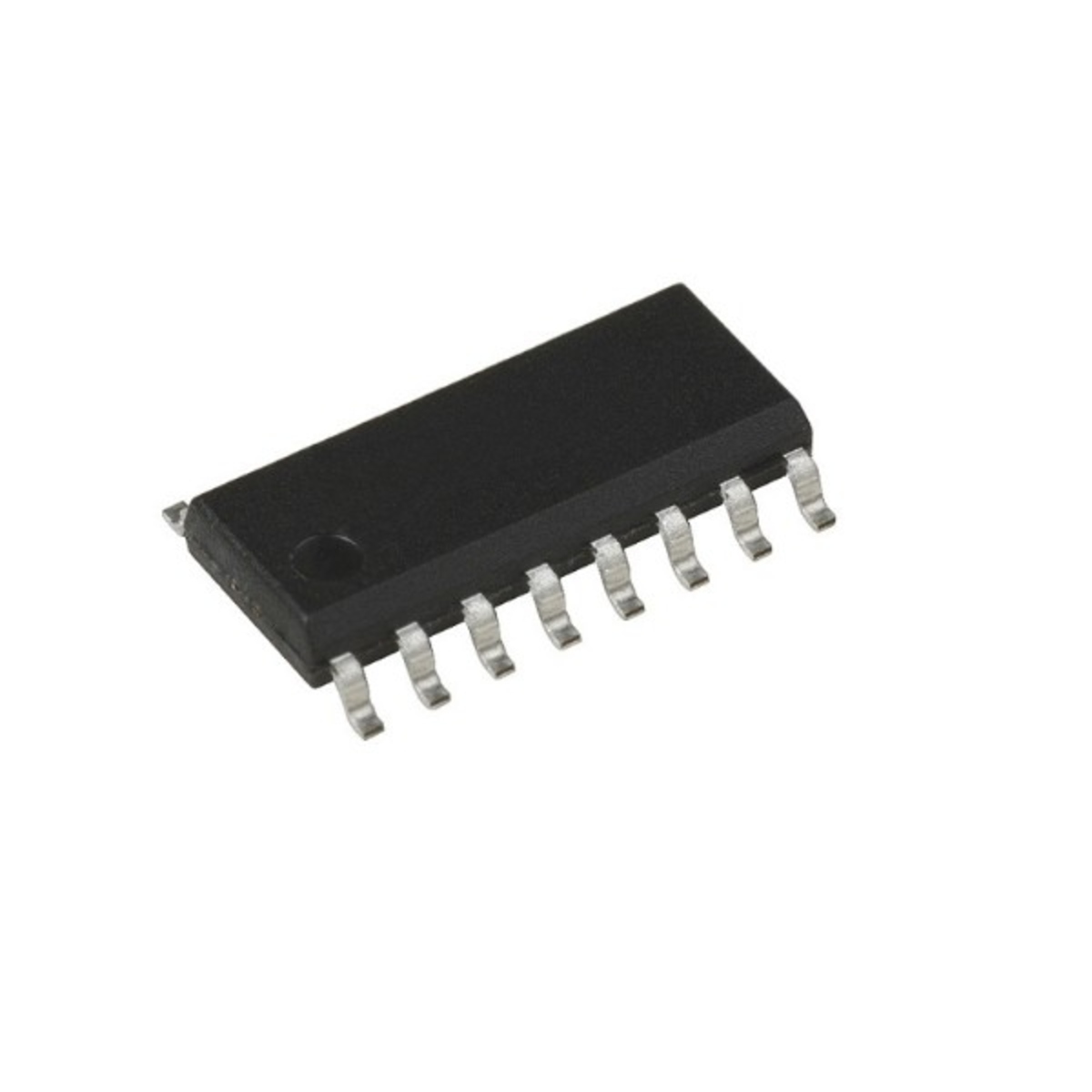

DG211DY Quad CMOS Analog Switch IC SOIC-16 (DG211DY Analog Switch IC)

The DG211DY is a precision quad CMOS analog switch IC designed for signal routing, multiplexing, data acquisition systems, instrumentation, audio switching, and industrial control applications. It features four independent analog switches with low on-resistance, fast switching characteristics, and excellent signal handling capability, making it ideal for both analog and digital signal switching applications.

Key Features -

• Quad CMOS analog switch IC

• Four independent analog switches

• Low on-resistance design

• Fast switching performance

• Low power consumption

• Wide analog signal range support

• TTL and CMOS compatible control inputs

• SOIC-16 surface mount package

Specifications -

• Product type - Analog Switch IC

• Model - DG211DY

• Function - Quad Analog Switch

• Technology - CMOS

• Number of switches - 4

• Package type - SOIC-16

• Mounting type - Surface Mount Device

• Control interface - Digital Logic Compatible

• On resistance - Low On Resistance

• Application - Analog and Digital Signal Switching

Applications -

• Data acquisition systems

• Signal multiplexing circuits

• Audio signal routing

• Industrial automation equipment

• Test and measurement instruments

• Communication systems

• Embedded electronic projects

• Instrumentation equipment
