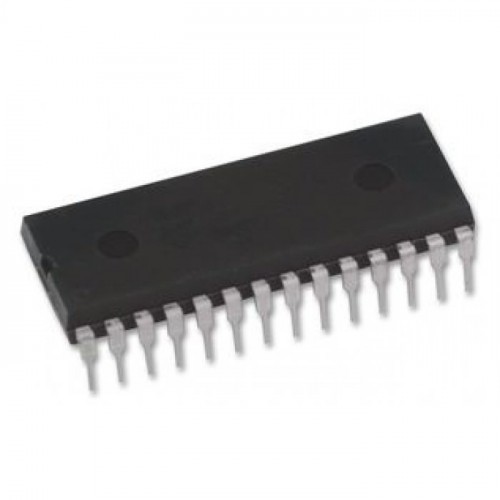

DG406DJ 16 Channel CMOS Analog Multiplexer IC (DIP 28)

The DG406DJ is a 16 channel single ended CMOS analog multiplexer IC designed to route one of sixteen analog input signals to a common output. It provides low ON resistance and low leakage performance, making it suitable for data acquisition, instrumentation, signal routing and industrial control applications.

Key Features -

• 16 channel analog multiplexer

• Single ended 16:1 configuration

• CMOS switching technology

• Low ON resistance

• Low leakage current

• Four bit binary channel selection

• Enable input for switching control

• Handles analog and digital signals

• Suitable for precision signal routing

• DIP 28 through hole package

Specifications -

• Part Number: DG406DJ

• Component Type: Analog Multiplexer

• Configuration: 16:1

• Number of Channels: 16

• Channel Selection: 4 Bit Binary

• Technology: CMOS

• Enable Control: Yes

• Signal Type: Analog and Digital

• Package Type: DIP 28

• Number of Pins: 28

• Mounting Type: Through Hole

Applications -

• Data acquisition systems

• Analog signal routing

• Industrial instrumentation

• Sensor multiplexing

• Measurement equipment

• Automated test equipment

• Process control systems

• Communication equipment

• Analog monitoring systems

• Multi channel measurement circuits
